LUMENIA | Luminaires F LUM GEN 2

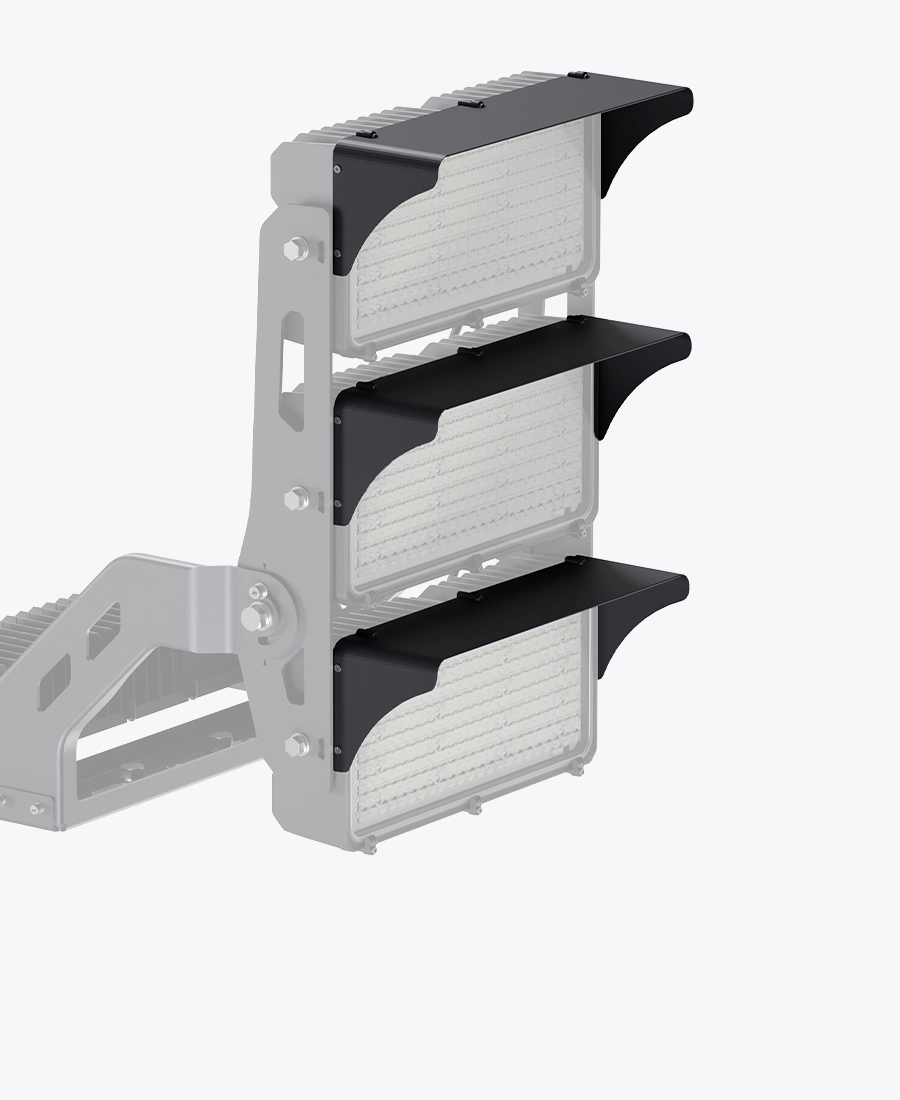

Vizir against light pollution

Separate LED driver for lift-free access

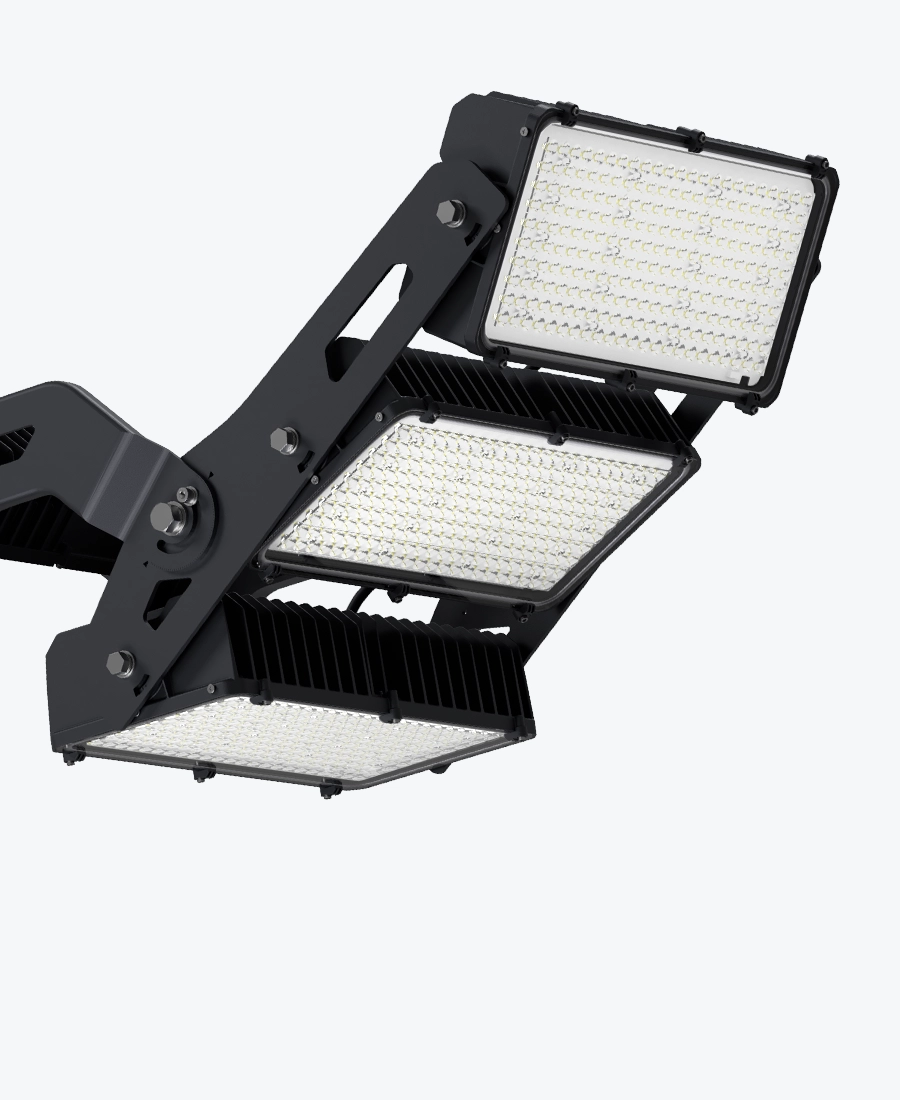

Adjustable module tilt

OUTDOOR LIGHTING

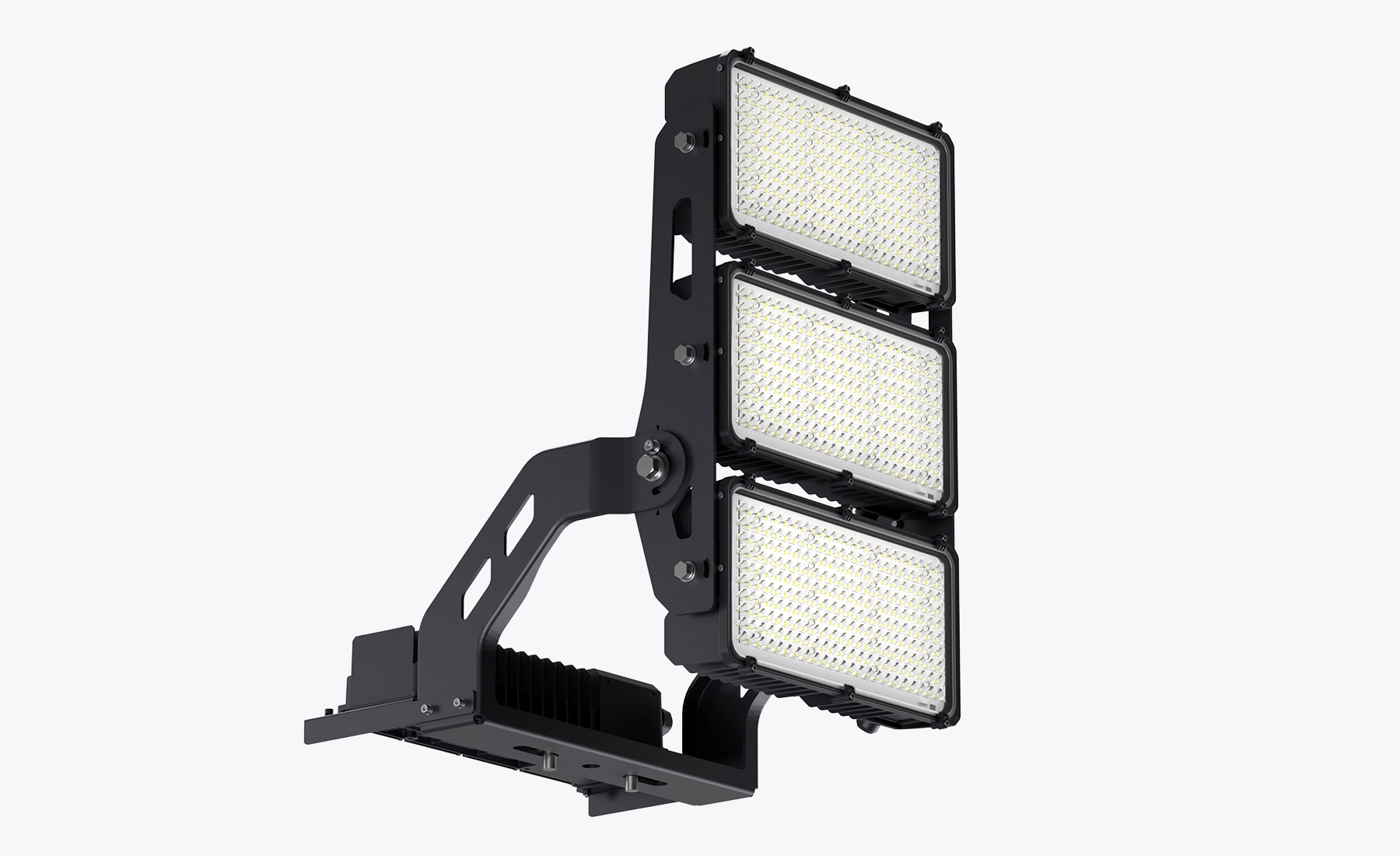

F LUM GEN 2

F LUM GEN 2 is a high-performance LED floodlight designed for demanding applications such as sports facilities, industrial areas, and large open spaces. Its modular design and power (W) ensure efficient and reliable lighting even in the most demanding conditions.

System efficiency up to 150 lm/W

Flicker-free

Various optics for all applications

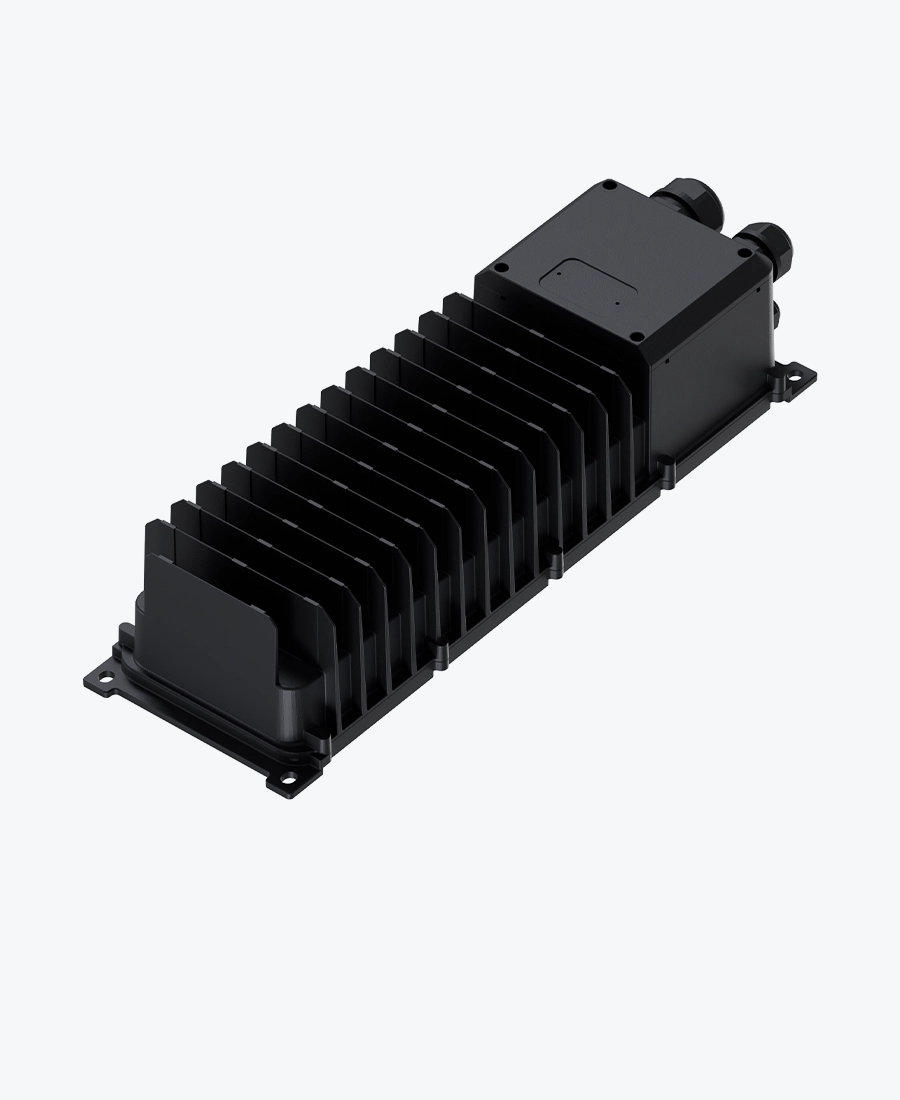

Removable LED driver module

Option of separate mounting of the LED driver module for easier maintenance

Option to adjust the angle of each module separately

More Send inquiry

Technical specifications

System efficiency [lm/W] to 155

Color rendering index (CRI, Ra) > 70

Power (W) 600 - 1800

Luminous flux (lm) 76211 - 279063

Correlated color temperature (CCT, K) 4000, 5000, 5700

Intrusion protection IP66

Surge protection (SPD) 10kV / 10kA

Operating temperature [°C] from -30 to + 50

Regulation DALI, DMX

Lifetime [h] L80B10 > 100000

Standard warranty (years) 5

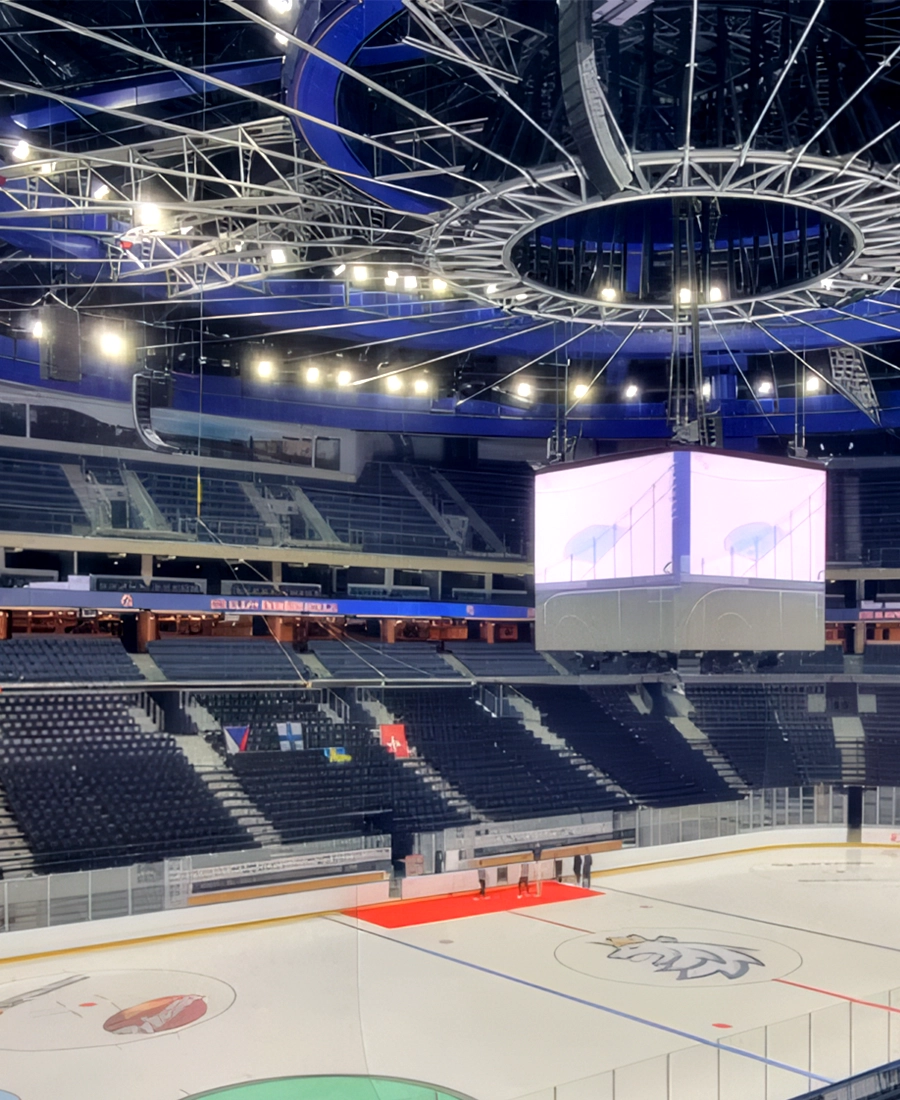

Areas of application Stadiums, Airports, Ports, Industrial zones, Outdoor parking lots, Production facilities

Optics

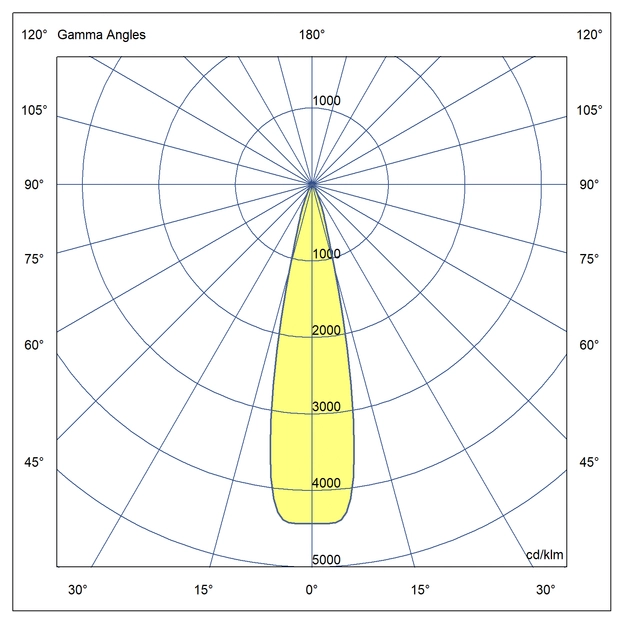

000

Symmetrical light distribution 23°

Optics Simetrična porazdelitev svetlobe 40°

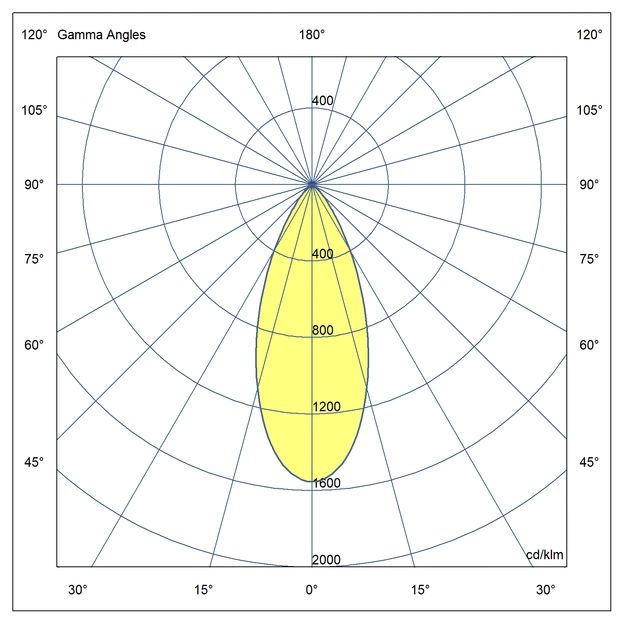

001

Symmetrical light distribution 40°

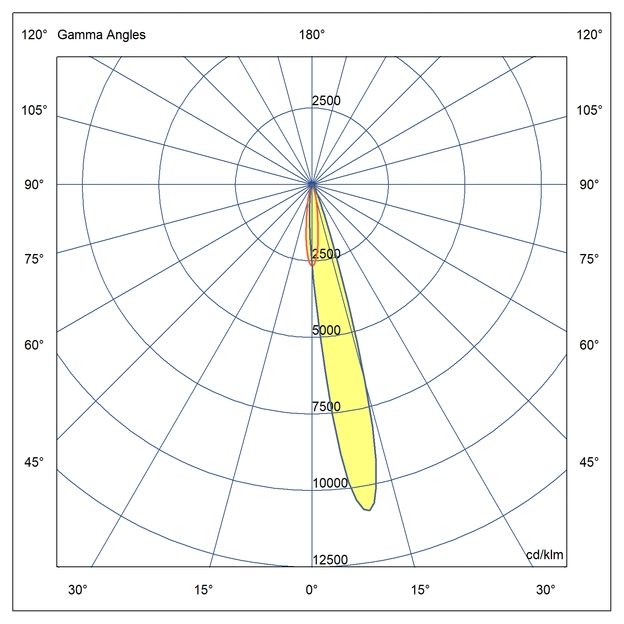

Optics Asimetrična porazdelitev svetlobe 23°

002

Asymmetrical light distribution 23°

Optics Asimetrična porazdelitev svetlobe 54°

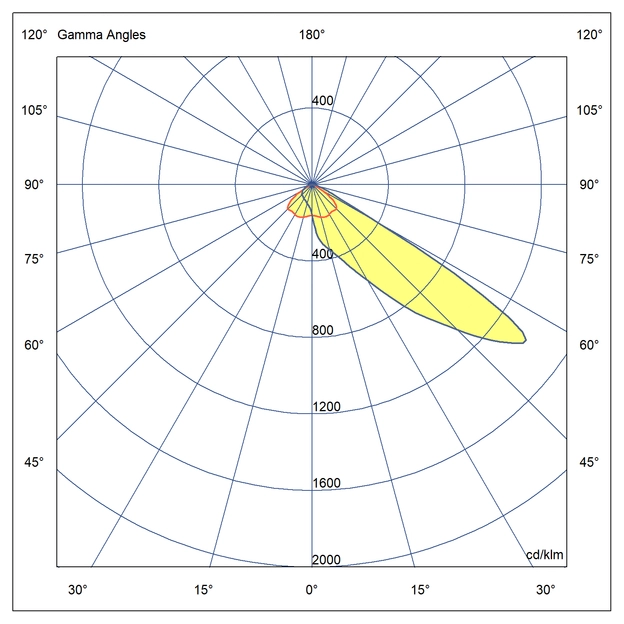

003

Asymmetrical light distribution 54°

Optics Asimetrična porazdelitev svetlobe 45°

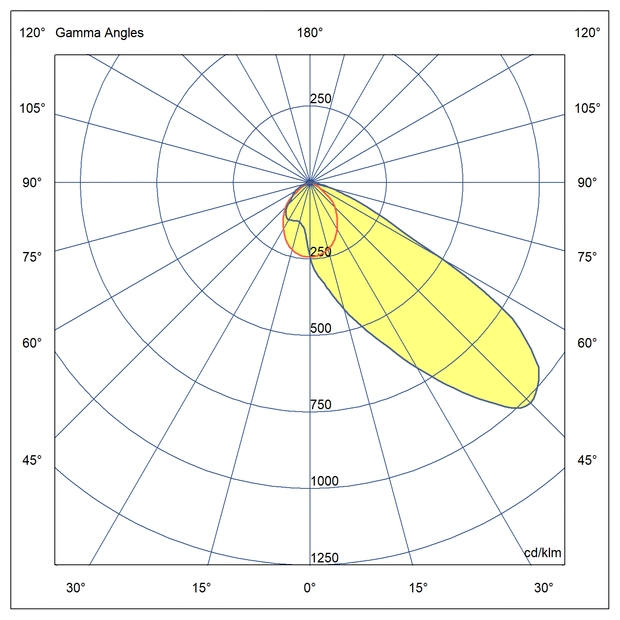

004

Asymmetrical light distribution 45°

005

Asymmetrical light distribution 54°

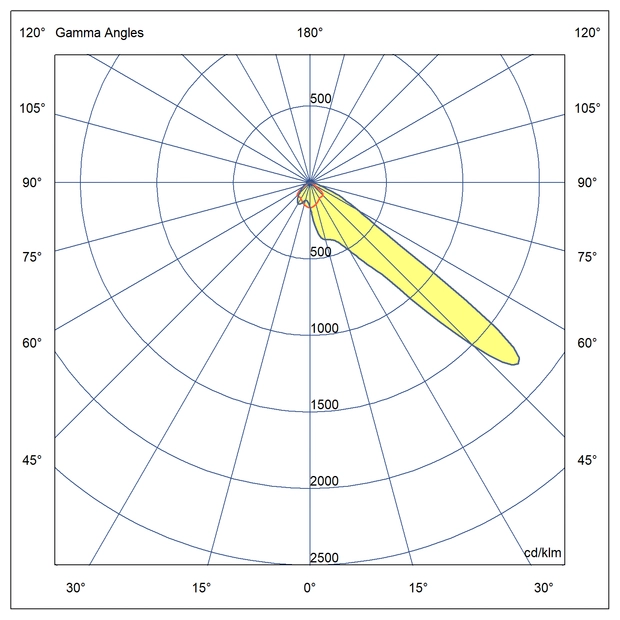

006

Asymmetrical light distribution 60°

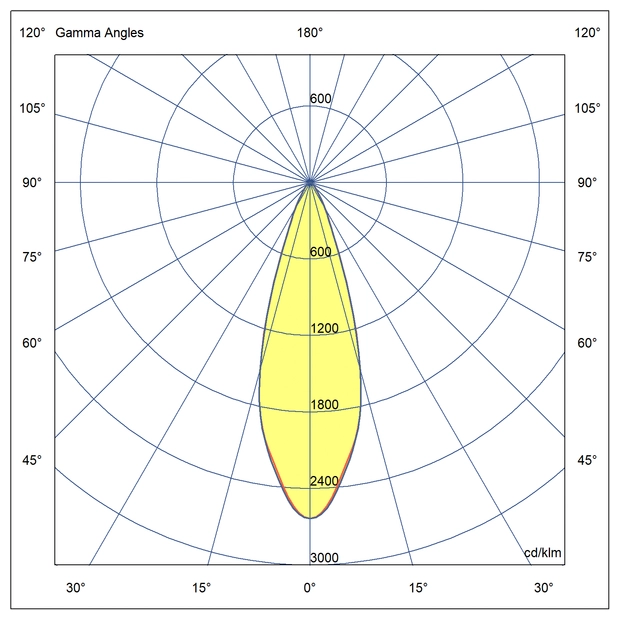

007

Symmetrical light distribution 90°

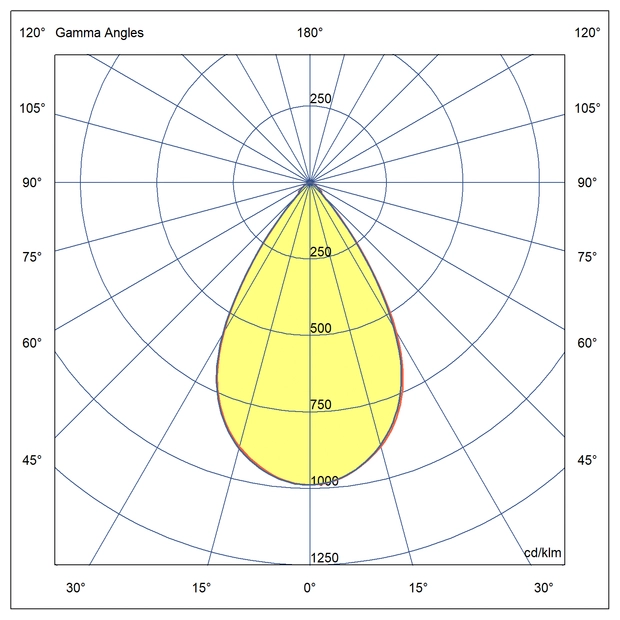

008

Symmetrical light distribution 60°

Versions

Correlated color temperature (CCT, K) 4000 5000 5700	Power (W) 600 960 1200 1800	Luminous flux (lm) 76211 77293 77421 78499 80223 80960 81361 81496 82632 85222 85223 85500 86877 86952 88710 91451 91529 92276 93379 123190 123278 124110 127801 128856 129674 129767 130643 134976 135638 137354 139219 140784 144584 145781 146547 148194 150480 151787 153129 157604 158458 158513 159776 161189 166440 166798 169778 170218 173354 173858 178714 179177 180742 183009 227265 230990 231101 239227 241428 243148 243265 246945 253080 254135 255311 259293 265109 268749 271094 272940 279063	Optics - code 000 001 002 003 004 005 006 007 008	Regulation DALI DMX
4000	600	76211	006	DALI
4000	600	76211	006	DMX
4000	600	77293	005	DALI
4000	600	77293	005	DMX
4000	600	77421	002	DALI
4000	600	77421	002	DMX
4000	600	78499	003	DALI
4000	600	78499	003	DMX
5000	600	80223	006	DALI
5700	600	80223	006	DALI
5000	600	80223	006	DMX
5700	600	80223	006	DMX
4000	600	80960	000	DALI
4000	600	80960	000	DMX
5000	600	81361	003	DALI
5700	600	81361	003	DALI
5000	600	81361	003	DMX
5700	600	81361	003	DMX
5000	600	81496	002	DALI
5700	600	81496	002	DALI
5000	600	81496	002	DMX
5700	600	81496	002	DMX
5000	600	82632	005	DALI
5700	600	82632	005	DALI
5000	600	82632	005	DMX
5700	600	82632	005	DMX
5000	600	85222	000	DALI
5000	600	85222	000	DMX
5700	600	85222	000	DMX
5700	600	85223	000	DALI
4000	600	85500	001	DALI
4000	600	85500	001	DMX
4000	600	86877	008	DALI
4000	600	86877	008	DMX
4000	600	86952	004	DALI
4000	600	86952	004	DMX
4000	600	88710	007	DALI
4000	600	88710	007	DMX
5000	600	91451	001	DALI
5700	600	91451	001	DALI
5000	600	91451	001	DMX
5700	600	91451	001	DMX
5000	600	91529	004	DALI
5700	600	91529	004	DALI
5000	600	91529	004	DMX
5700	600	91529	004	DMX
5000	600	92276	008	DALI
5700	600	92276	008	DALI
5000	600	92276	008	DMX
5700	600	92276	008	DMX
5000	600	93379	007	DALI
5700	600	93379	007	DALI
5000	600	93379	007	DMX
5700	600	93379	007	DMX
4000	960	123190	006	DALI
4000	960	123190	006	DMX
4000	960	123278	002	DALI
4000	960	123278	002	DMX
4000	960	124110	003	DALI
4000	960	124110	005	DALI
4000	960	124110	003	DMX
4000	960	124110	005	DMX
5000	960	127801	005	DALI
5700	960	127801	005	DALI
5000	960	127801	005	DMX
5700	960	127801	005	DMX
4000	960	128856	000	DALI
4000	960	128856	000	DMX
5000	960	129674	006	DALI
5700	960	129674	006	DALI
5000	960	129674	006	DMX
5700	960	129674	006	DMX
5000	960	129767	002	DALI
5700	960	129767	002	DALI
5000	960	129767	002	DMX
5700	960	129767	002	DMX
5000	960	130643	003	DALI
5700	960	130643	003	DALI
5000	960	130643	003	DMX
5700	960	130643	003	DMX
4000	960	134976	001	DALI
4000	960	134976	001	DMX
5000	960	135638	000	DALI
5700	960	135638	000	DALI
5000	960	135638	000	DMX
5700	960	135638	000	DMX
4000	960	137354	008	DMX
4000	960	139219	004	DALI
4000	960	139219	004	DMX
4000	960	140784	007	DALI
4000	960	140784	007	DMX
5000	960	144584	001	DALI
5700	960	144584	001	DALI
5000	960	144584	001	DMX
5700	960	144584	001	DMX
5000	960	145781	008	DALI
5700	960	145781	008	DALI
5000	960	145781	008	DMX
5700	960	145781	008	DMX
5000	960	146547	004	DALI
5700	960	146547	004	DALI
5000	960	146547	004	DMX
5700	960	146547	004	DMX
5000	960	148194	007	DALI
5700	960	148194	007	DALI
5000	960	148194	007	DMX
5700	960	148194	007	DMX
4000	1200	150480	002	DALI
4000	1200	150480	002	DMX
4000	1200	151787	006	DALI
4000	1200	151787	006	DMX
4000	1200	153129	003	DALI
4000	1200	153129	005	DALI
4000	1200	153129	003	DMX
4000	1200	153129	005	DMX
5000	1200	157604	005	DALI
5700	1200	157604	005	DALI
5000	1200	157604	005	DMX
5700	1200	157604	005	DMX
4000	1200	158458	000	DALI
4000	1200	158458	000	DMX
5000	1200	158513	002	DALI
5700	1200	158513	002	DALI
5000	1200	158513	002	DMX
5700	1200	158513	002	DMX
5000	1200	159776	006	DALI
5700	1200	159776	006	DALI
5000	1200	159776	006	DMX
5700	1200	159776	006	DMX
5000	1200	161189	003	DALI
5700	1200	161189	003	DALI
5000	1200	161189	003	DMX
5700	1200	161189	003	DMX
4000	1200	166440	001	DALI
4000	1200	166440	001	DMX
5000	1200	166798	000	DALI
5700	1200	166798	000	DALI
5000	1200	166798	000	DMX
5700	1200	166798	000	DMX
4000	1200	169778	004	DALI
4000	1200	169778	004	DMX
4000	1200	170218	008	DALI
4000	1200	170218	008	DMX
4000	960	173354	008	DALI
4000	1200	173858	007	DALI
4000	1200	173858	007	DMX
5000	1200	178714	004	DALI
5700	1200	178714	004	DALI
5000	1200	178714	004	DMX
5700	1200	178714	004	DMX
5000	1200	179177	001	DALI
5700	1200	179177	001	DALI
5000	1200	179177	001	DMX
5700	1200	179177	001	DMX
5000	1200	180742	008	DALI
5700	1200	180742	008	DALI
5000	1200	180742	008	DMX
5700	1200	180742	008	DMX
5000	1200	183009	007	DALI
5700	1200	183009	007	DALI
5000	1200	183009	007	DMX
5700	1200	183009	007	DMX
4000	1800	227265	006	DALI
4000	1800	227265	006	DMX
4000	1800	230990	003	DALI
4000	1800	230990	005	DALI
4000	1800	230990	003	DMX
4000	1800	230990	005	DMX
4000	1800	231101	002	DALI
4000	1800	231101	002	DMX
5000	1800	239227	006	DALI
5700	1800	239227	006	DALI
5000	1800	239227	006	DMX
5700	1800	239227	006	DMX
4000	1800	241428	000	DALI
4000	1800	241428	000	DMX
5000	1800	243148	003	DALI
5700	1800	243148	003	DALI
5000	1800	243148	003	DMX
5700	1800	243148	003	DMX
5000	1800	243265	002	DALI
5700	1800	243265	002	DALI
5000	1800	243265	002	DMX
5700	1800	243265	002	DMX
5000	1800	246945	005	DALI
5700	1800	246945	005	DALI
5000	1800	246945	005	DMX
5700	1800	246945	005	DMX
4000	1800	253080	001	DALI
4000	1800	253080	001	DMX
5000	1800	254135	000	DALI
5700	1800	254135	000	DALI
5000	1800	254135	000	DMX
5700	1800	254135	000	DMX
4000	1800	255311	008	DALI
4000	1800	255311	008	DMX
4000	1800	259293	004	DALI
4000	1800	259293	004	DMX
4000	1800	265109	007	DALI
4000	1800	265109	007	DMX
5000	1800	268749	001	DALI
5700	1800	268749	001	DALI
5000	1800	268749	001	DMX
5700	1800	268749	001	DMX
5000	1800	271094	008	DALI
5700	1800	271094	008	DALI
5000	1800	271094	008	DMX
5700	1800	271094	008	DMX
5000	1800	272940	004	DALI
5700	1800	272940	004	DALI
5000	1800	272940	004	DMX
5700	1800	272940	004	DMX
5000	1800	279063	007	DALI
5700	1800	279063	007	DALI
5000	1800	279063	007	DMX
5700	1800	279063	007	DMX
