LUMENIA | Luminaires O LUM BACKLIT PANEL

An innovative optical solution contributes to above-average luminance (cd/m²) and exceptional luminous efficacy (lm/W).

INDOOR LIGHTING

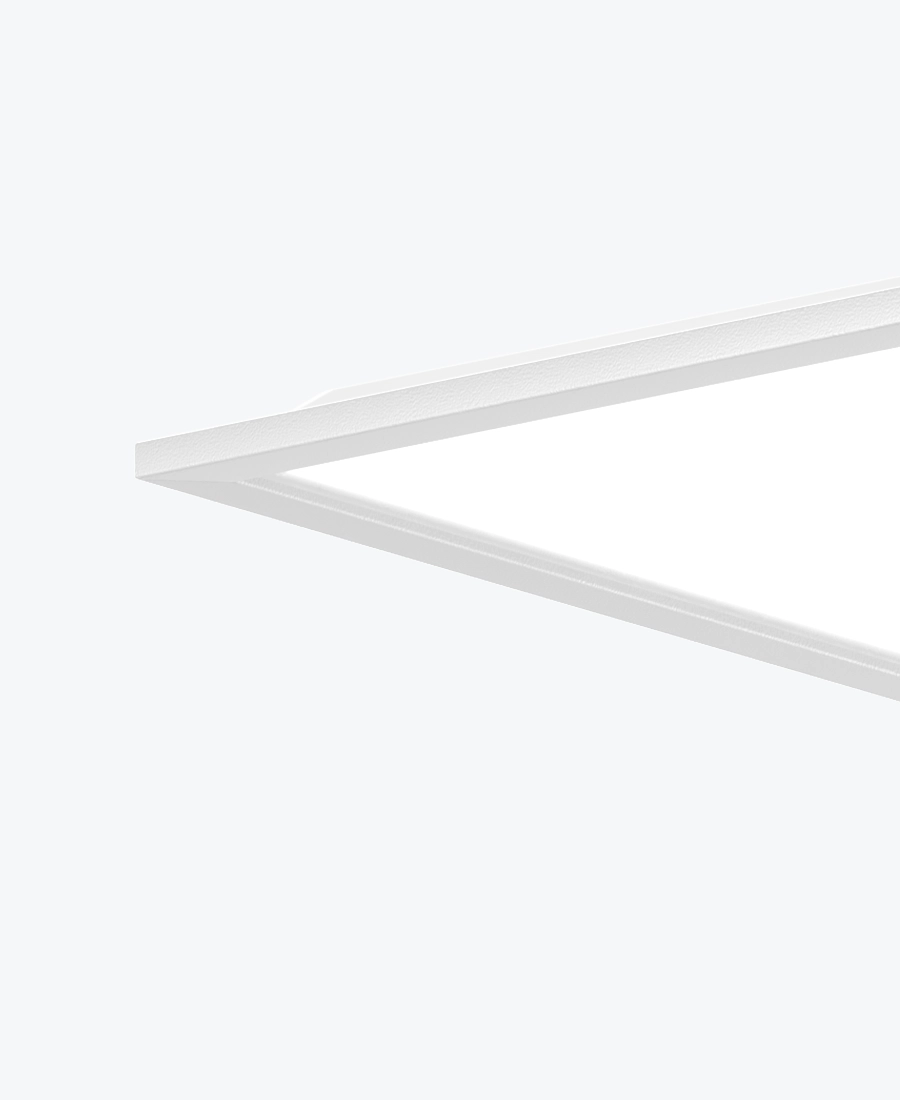

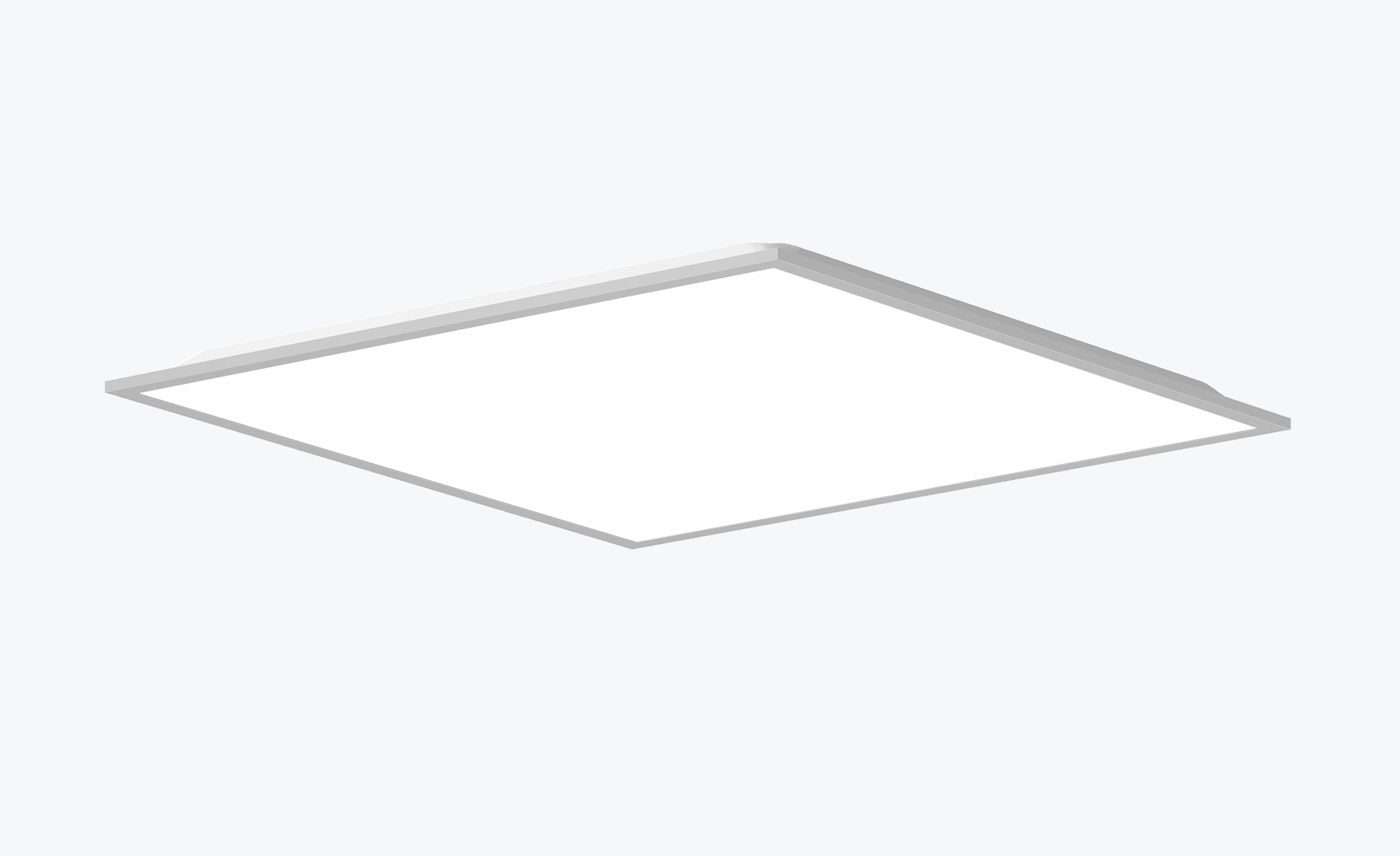

O LUM BACKLIT PANEL

The LUM BACKLIT PANEL is a high-end LED ceiling panel that provides excellent light utilization. It has an elegant aluminum frame that fits easily into any space. It is easy to install both flush-mounted and surface-mounted. The technology of backlighting the panel significantly increases light efficiency and distributes light more evenly across the entire panel.

Energy efficient up to 160 lm/W

Flicker-free

Optional emergency lighting

More Send inquiry

Technical specifications

System efficiency [lm/W] to 160

Color rendering index (CRI, Ra) > 90

Power (W) 26

Luminous flux (lm) 4160

Correlated color temperature (CCT, K) 4000

Intrusion protection IP20

Operating temperature [°C] from -20 to +40

Mounting Recessed, Ceiling mounted

Regulation None, DALI

Lifetime [h] L80B20 > 50000

Standard warranty (years) 5

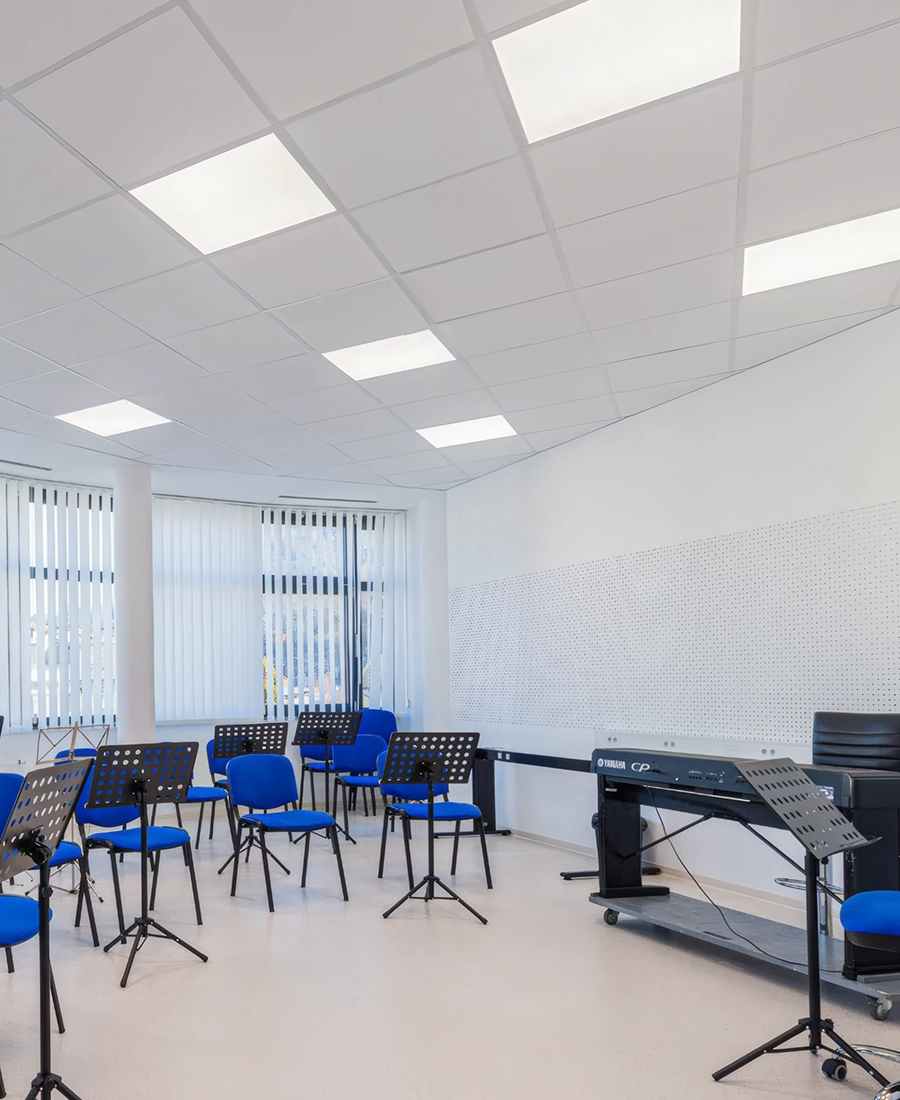

Areas of application Offices, Storage rooms, Living rooms, Schools, Retail, Meeting rooms

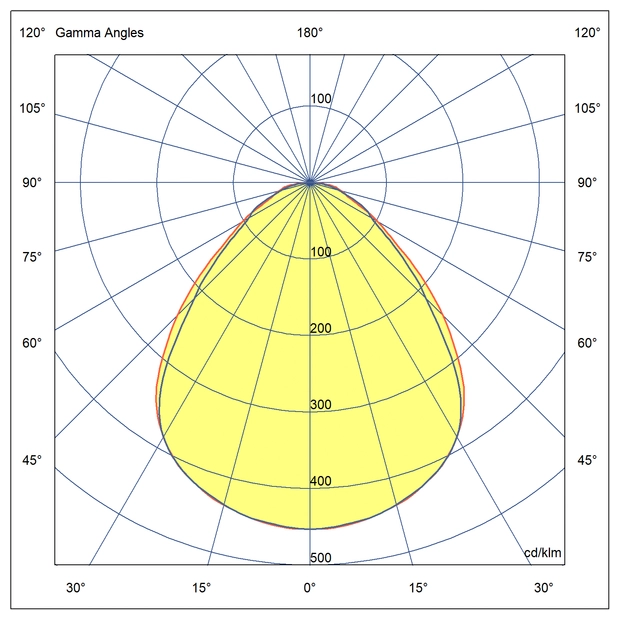

Optics

000

Suitable for offices with Lambert light distribution and low glare (UGR)

Versions

Dimensions (W x H x D) [mm] 595 x 26 x 595 600 x 63 x 600 295 x 26 x 1195 300 x 63 x 1200	Mounting Recessed Ceiling mounted	Regulation None DALI	System autonomy [hours] None 1 3
595 x 26 x 595	Recessed	None	None
595 x 26 x 595	Recessed	None	1
595 x 26 x 595	Recessed	None	3
595 x 26 x 595	Recessed	None	None
595 x 26 x 595	Recessed	None	1
595 x 26 x 595	Recessed	None	3
595 x 26 x 595	Recessed	None	None
595 x 26 x 595	Recessed	None	1
595 x 26 x 595	Recessed	None	3
595 x 26 x 595	Recessed	DALI	None
595 x 26 x 595	Recessed	DALI	1
595 x 26 x 595	Recessed	DALI	3
595 x 26 x 595	Recessed	DALI	None
595 x 26 x 595	Recessed	DALI	1
595 x 26 x 595	Recessed	DALI	3
595 x 26 x 595	Recessed	DALI	None
595 x 26 x 595	Recessed	DALI	1
595 x 26 x 595	Recessed	DALI	3
600 x 63 x 600	Ceiling mounted	None	None
600 x 63 x 600	Ceiling mounted	None	1
600 x 63 x 600	Ceiling mounted	None	3
600 x 63 x 600	Ceiling mounted	None	None
600 x 63 x 600	Ceiling mounted	None	1
600 x 63 x 600	Ceiling mounted	None	3
600 x 63 x 600	Ceiling mounted	None	None
600 x 63 x 600	Ceiling mounted	None	1
600 x 63 x 600	Ceiling mounted	None	3
600 x 63 x 600	Ceiling mounted	DALI	None
600 x 63 x 600	Ceiling mounted	DALI	1
600 x 63 x 600	Ceiling mounted	DALI	3
600 x 63 x 600	Ceiling mounted	DALI	None
600 x 63 x 600	Ceiling mounted	DALI	1
600 x 63 x 600	Ceiling mounted	DALI	3
600 x 63 x 600	Ceiling mounted	DALI	None
600 x 63 x 600	Ceiling mounted	DALI	1
600 x 63 x 600	Ceiling mounted	DALI	3
295 x 26 x 1195	Recessed	None	None
295 x 26 x 1195	Recessed	None	1
295 x 26 x 1195	Recessed	None	3
295 x 26 x 1195	Recessed	None	None
295 x 26 x 1195	Recessed	None	1
295 x 26 x 1195	Recessed	None	3
295 x 26 x 1195	Recessed	None	None
295 x 26 x 1195	Recessed	None	1
295 x 26 x 1195	Recessed	None	3
295 x 26 x 1195	Recessed	DALI	None
295 x 26 x 1195	Recessed	DALI	1
295 x 26 x 1195	Recessed	DALI	3
295 x 26 x 1195	Recessed	DALI	None
295 x 26 x 1195	Recessed	DALI	1
295 x 26 x 1195	Recessed	DALI	3
295 x 26 x 1195	Recessed	DALI	None
295 x 26 x 1195	Recessed	DALI	1
295 x 26 x 1195	Recessed	DALI	3
300 x 63 x 1200	Ceiling mounted	None	None
300 x 63 x 1200	Ceiling mounted	None	1
300 x 63 x 1200	Ceiling mounted	None	3
300 x 63 x 1200	Ceiling mounted	None	None
300 x 63 x 1200	Ceiling mounted	None	1
300 x 63 x 1200	Ceiling mounted	None	3
300 x 63 x 1200	Ceiling mounted	None	None
300 x 63 x 1200	Ceiling mounted	None	1
300 x 63 x 1200	Ceiling mounted	None	3
300 x 63 x 1200	Ceiling mounted	DALI	None
300 x 63 x 1200	Ceiling mounted	DALI	1
300 x 63 x 1200	Ceiling mounted	DALI	3
300 x 63 x 1200	Ceiling mounted	DALI	None
300 x 63 x 1200	Ceiling mounted	DALI	1
300 x 63 x 1200	Ceiling mounted	DALI	3
300 x 63 x 1200	Ceiling mounted	DALI	None
300 x 63 x 1200	Ceiling mounted	DALI	1
300 x 63 x 1200	Ceiling mounted	DALI	3
