LUMENIA | Luminaires F LUM MINI GEN 2

OUTDOOR LIGHTING

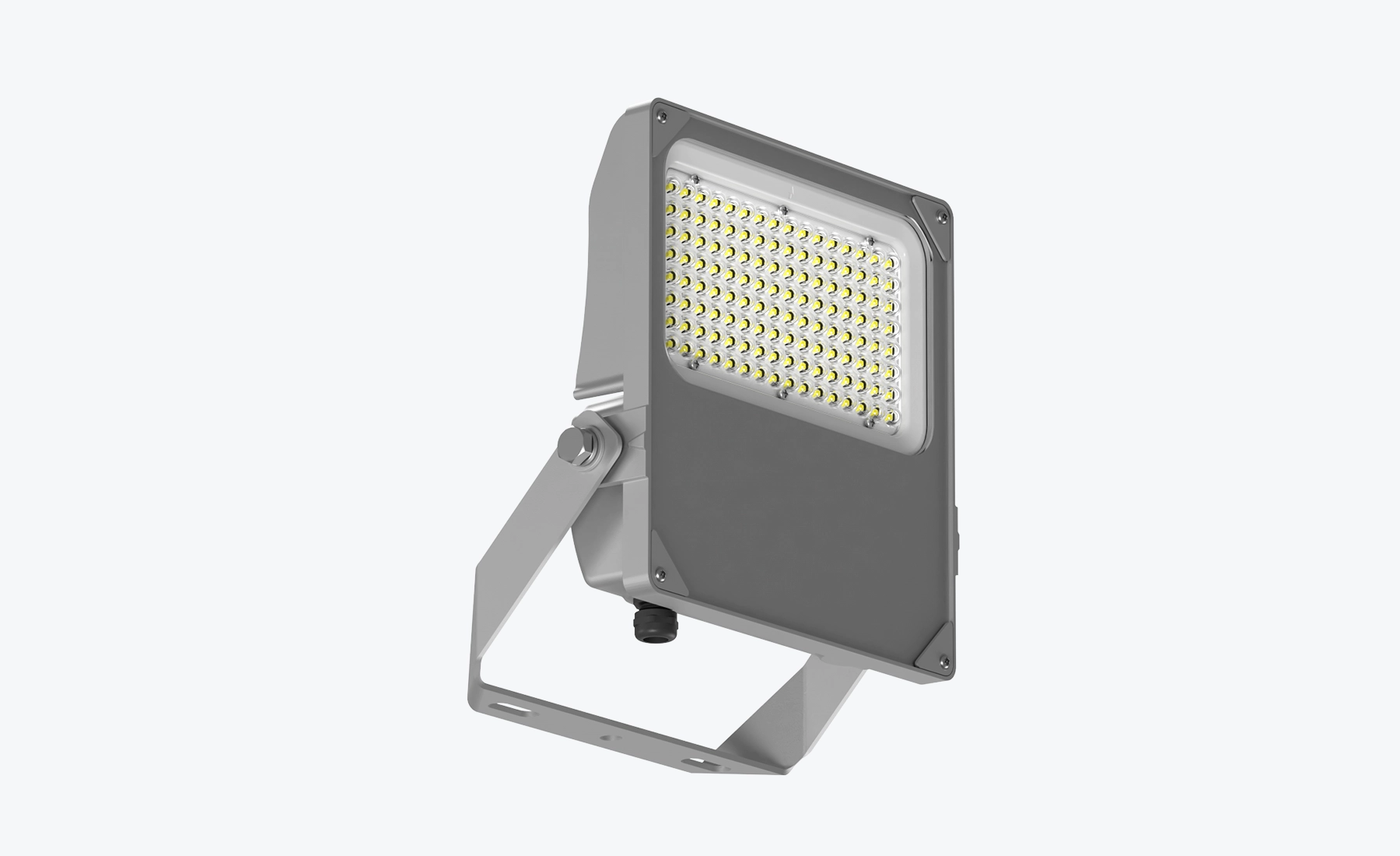

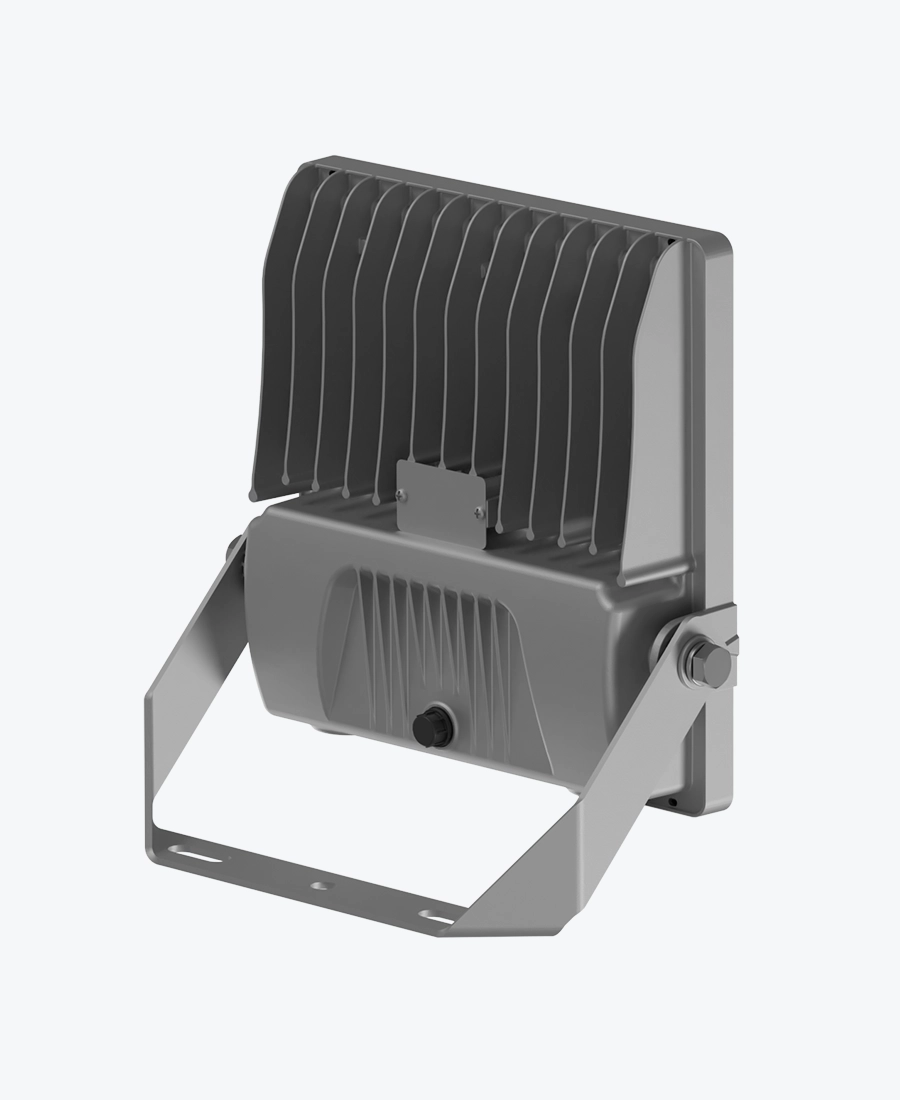

F LUM MINI GEN 2

F LUM MINI GEN 2 is a compact spotlight designed for effective lighting of smaller outdoor areas such as gardens, courtyards, and paths. The lightweight and compact design allows for easy installation and efficient heat dissipation heat dissipation, which extends the lifetime (L80/B10 @ h) of the luminaire.

System efficiency up to 150 lm/W

Easy installation

Flicker-free

Compact design and low weight

More Send inquiry

Technical specifications

System efficiency [lm/W] to 150

Color rendering index (CRI, Ra) > 70

Power (W) 30 - 150

Luminous flux (lm) 4200 - 22500

Correlated color temperature (CCT, K) 3000, 4000

Intrusion protection IP66

Surge protection (SPD) 20kV / 10kA

Operating temperature [°C] from -30 to + 50

Mounting Bracket mounting

Electrical protection class I

Regulation None, DALI

Lifetime [h] L80B10 > 60000

Standard warranty (years) 5

Areas of application Architectural lighting, Advertising billboards, Small parking lots, Gas stations, Small and medium-sized sports fields

Optics

000

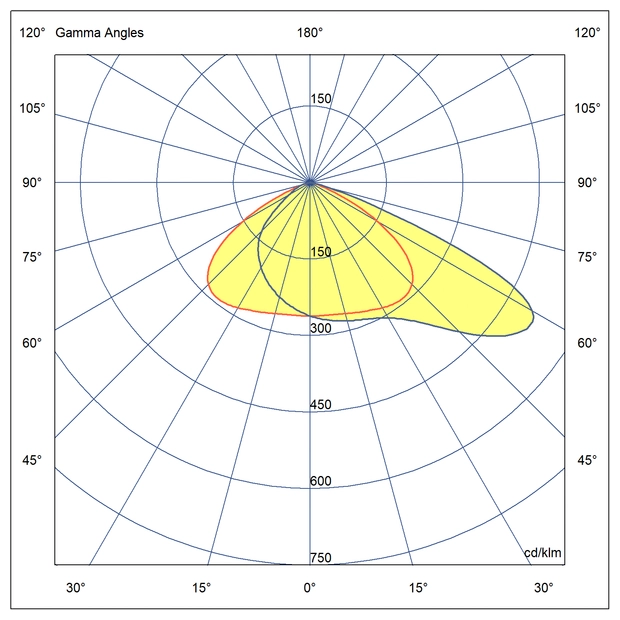

Asymmetrical light distribution 45°

001

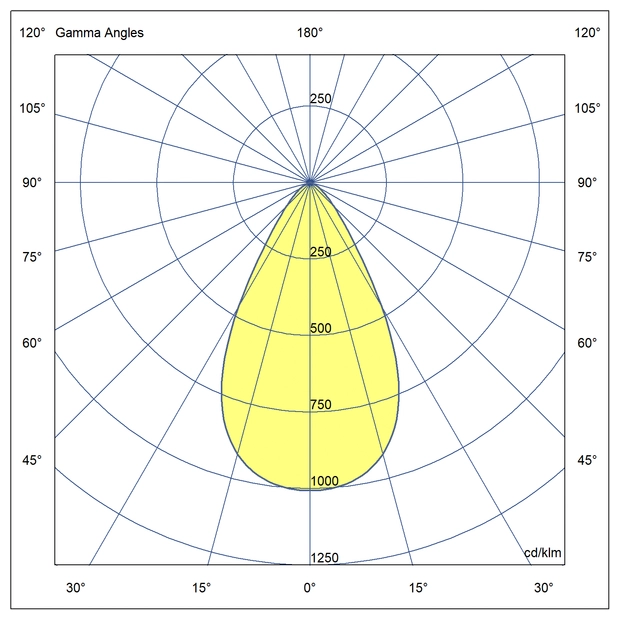

Symmetrical light distribution 60°

Versions

Correlated color temperature (CCT, K) 3000 4000	Power (W) 30 50 80 100 150	Luminous flux (lm) 4200 4500 7000 7500 11200 12000 14000 15000 21000 22500	Optics - code 000 001	Regulation None DALI
3000	30	4200	000	None
3000	30	4200	000	DALI
3000	30	4200	001	None
3000	30	4200	001	DALI
4000	30	4500	000	None
4000	30	4500	000	DALI
4000	30	4500	001	None
4000	30	4500	001	DALI
3000	50	7000	000	None
3000	50	7000	000	DALI
3000	50	7000	001	None
3000	50	7000	001	DALI
4000	50	7500	000	None
4000	50	7500	000	DALI
4000	50	7500	001	None
4000	50	7500	001	DALI
3000	80	11200	000	None
3000	80	11200	000	DALI
3000	80	11200	001	None
3000	80	11200	001	DALI
4000	80	12000	000	None
4000	80	12000	000	DALI
4000	80	12000	001	None
4000	80	12000	001	DALI
3000	100	14000	000	None
3000	100	14000	000	DALI
3000	100	14000	001	None
3000	100	14000	001	DALI
4000	100	15000	000	None
4000	100	15000	000	DALI
4000	100	15000	001	None
4000	100	15000	001	DALI
3000	150	21000	000	None
3000	150	21000	000	DALI
3000	150	21000	001	None
3000	150	21000	001	DALI
4000	150	22500	000	None
4000	150	22500	000	DALI
4000	150	22500	001	None
4000	150	22500	001	DALI
