LUMENIA | Luminaires O LUM PANEL

INDOOR LIGHTING

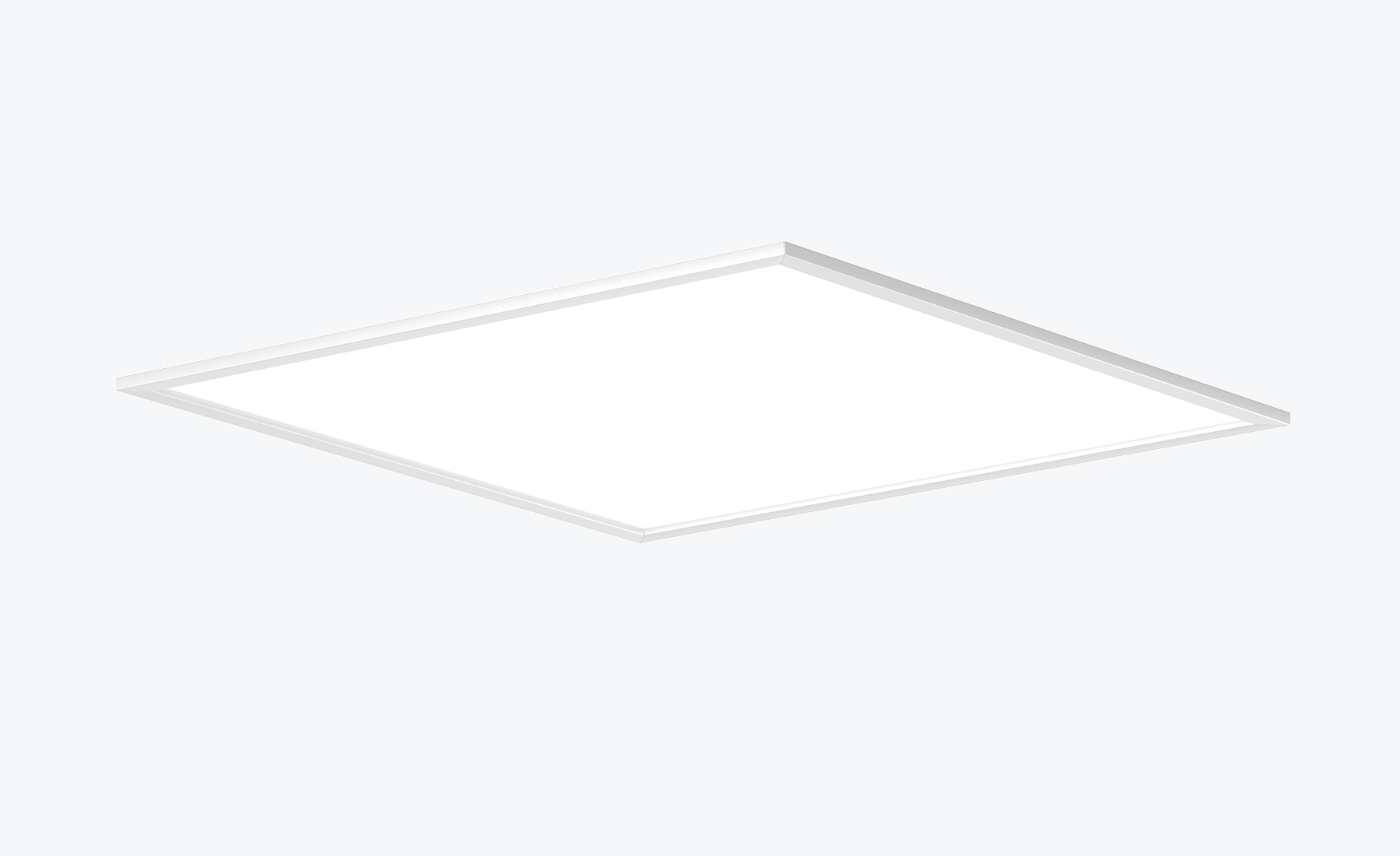

O LUM PANEL

O LUM PANEL is an excellent choice for lighting interior spaces such as offices, classrooms, meeting rooms, and other workspaces. The double-sided Edge-lit system design ensures less heat build-up, which means a longer lifetime for luminaires. The PMMA diffuser prevents yellowing, ensuring that the light remains uniform throughout its lifetime.

Energy efficient up to 140 lm/W

Flicker-free

More Send inquiry

Technical specifications

System efficiency [lm/W] to 140

Color rendering index (CRI, Ra) > 80, > 90

Power (W) 30 - 40

Luminous flux (lm) 3600 - 4800

Correlated color temperature (CCT, K) 3000, 4000

Operating temperature [°C] from -20 to +40

Mounting Recessed, Ceiling mounted, Mounting on steel wire

Regulation None, DALI, DALI DT8

Lifetime [h] L80B10 > 50000

Standard warranty (years) 5

Areas of application Offices, Storage rooms, Living rooms, Schools, Retail, Meeting rooms

Optics

000

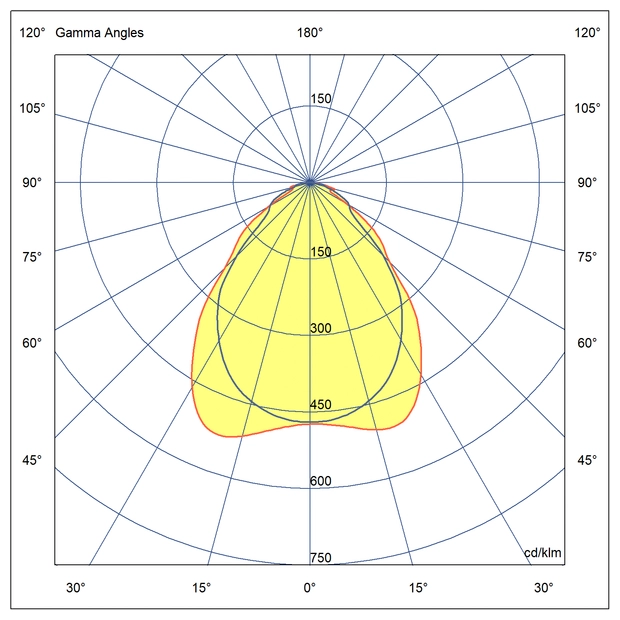

Suitable for offices with Lambert light distribution and low glare (UGR)

Versions

Correlated color temperature (CCT, K) 3000 4000	Power (W) 30 36 40	Luminous flux (lm) 3600 3840 4000 4200 4300 4400 4800	Color rendering index (CRI, Ra) > 80 > 90	Dimensions (W x H x D) [mm] 595 x 10 x 595 600 x 65 x 600 295 x 10 x 1195 299 x 50 x 1199	Regulation None DALI DALI DT8
3000	36	3840	> 80	295 x 10 x 1195	None
3000	36	3840	> 80	299 x 50 x 1199	None
3000	36	3840	> 80	295 x 10 x 1195	None
3000	36	3840	> 80	295 x 10 x 1195	DALI
3000	36	3840	> 80	299 x 50 x 1199	DALI
3000	36	3840	> 80	295 x 10 x 1195	DALI
3000	40	4000	> 80	295 x 10 x 1195	None
3000	40	4000	> 80	299 x 50 x 1199	None
3000	40	4000	> 80	295 x 10 x 1195	None
3000	40	4000	> 80	295 x 10 x 1195	DALI
3000	40	4000	> 80	299 x 50 x 1199	DALI
3000	40	4000	> 80	295 x 10 x 1195	DALI
4000	36	3600	> 80	595 x 10 x 595	DALI DT8
4000	36	3600	> 80	600 x 65 x 600	DALI DT8
4000	30	4200	> 80	595 x 10 x 595	None
4000	30	4200	> 80	600 x 65 x 600	None
4000	30	4200	> 80	595 x 10 x 595	DALI
4000	30	4200	> 80	600 x 65 x 600	DALI
4000	36	4300	> 80	595 x 10 x 595	None
4000	36	4300	> 80	600 x 65 x 600	None
4000	36	4300	> 80	595 x 10 x 595	DALI
4000	36	4300	> 80	600 x 65 x 600	DALI
4000	36	4300	> 90	595 x 10 x 595	None
4000	36	4300	> 90	600 x 65 x 600	None
4000	36	4300	> 90	595 x 10 x 595	DALI
4000	36	4300	> 90	600 x 65 x 600	DALI
4000	36	4300	> 80	295 x 10 x 1195	None
4000	36	4300	> 80	299 x 50 x 1199	None
4000	36	4300	> 80	295 x 10 x 1195	None
4000	36	4300	> 80	295 x 10 x 1195	DALI
4000	36	4300	> 80	299 x 50 x 1199	DALI
4000	36	4300	> 80	295 x 10 x 1195	DALI
4000	36	4300	> 90	295 x 10 x 1195	None
4000	36	4300	> 90	299 x 50 x 1199	None
4000	36	4300	> 90	295 x 10 x 1195	None
4000	36	4300	> 90	295 x 10 x 1195	DALI
4000	36	4300	> 90	299 x 50 x 1199	DALI
4000	36	4300	> 90	295 x 10 x 1195	DALI
3000	40	4400	> 80	595 x 10 x 595	None
3000	40	4400	> 80	600 x 65 x 600	None
3000	40	4400	> 80	595 x 10 x 595	DALI
3000	40	4400	> 80	600 x 65 x 600	DALI
4000	40	4800	> 80	595 x 10 x 595	None
4000	40	4800	> 80	600 x 65 x 600	None
4000	40	4800	> 80	595 x 10 x 595	DALI
4000	40	4800	> 80	600 x 65 x 600	DALI
