LUMENIA | Luminaires W LUM GEN 2

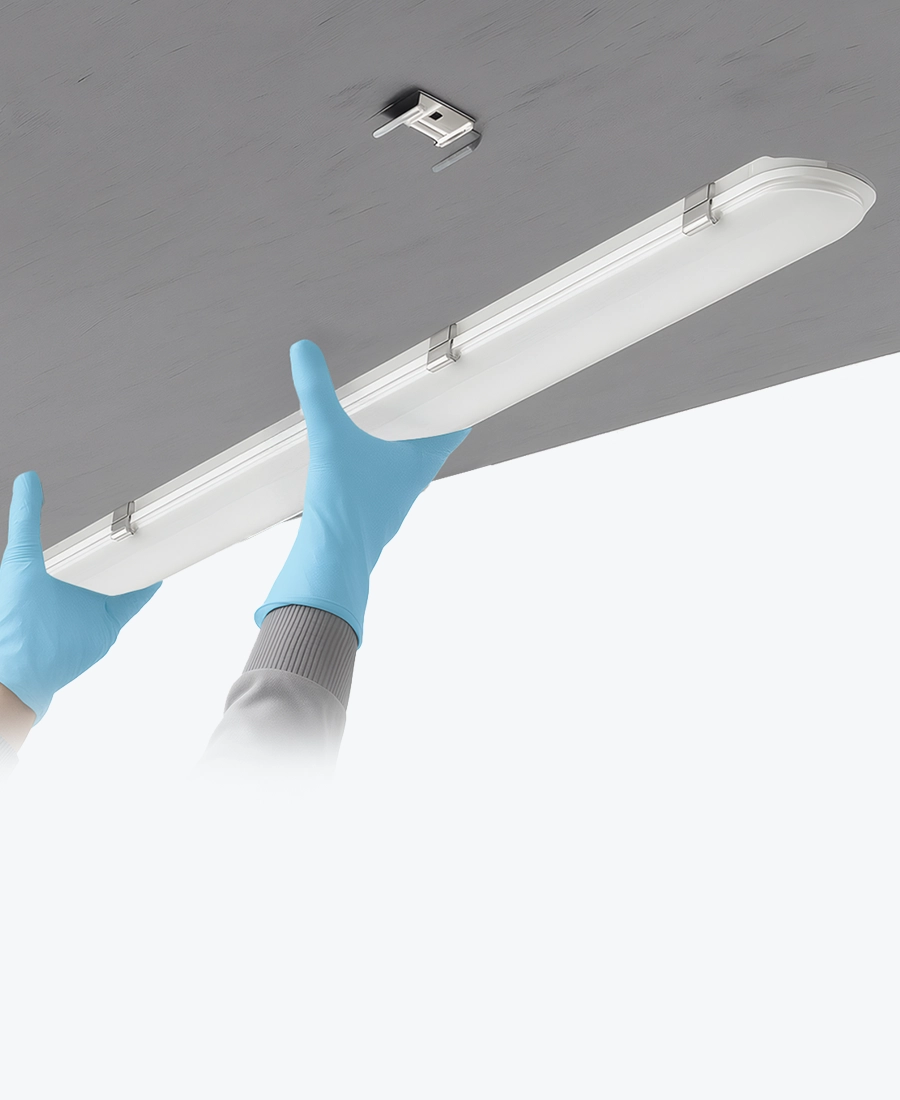

Quick installation with click system

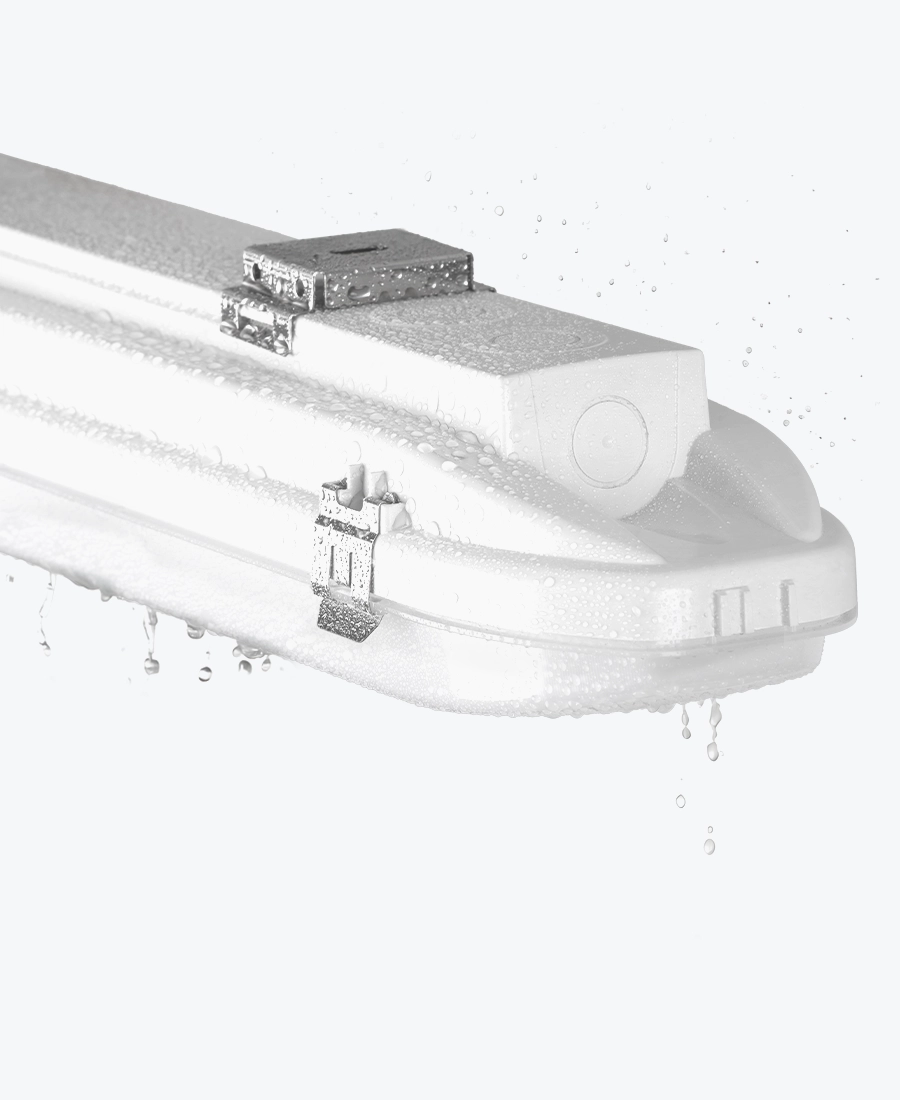

IP66 – water and dust resistant

INDUSTRIAL LIGHTING

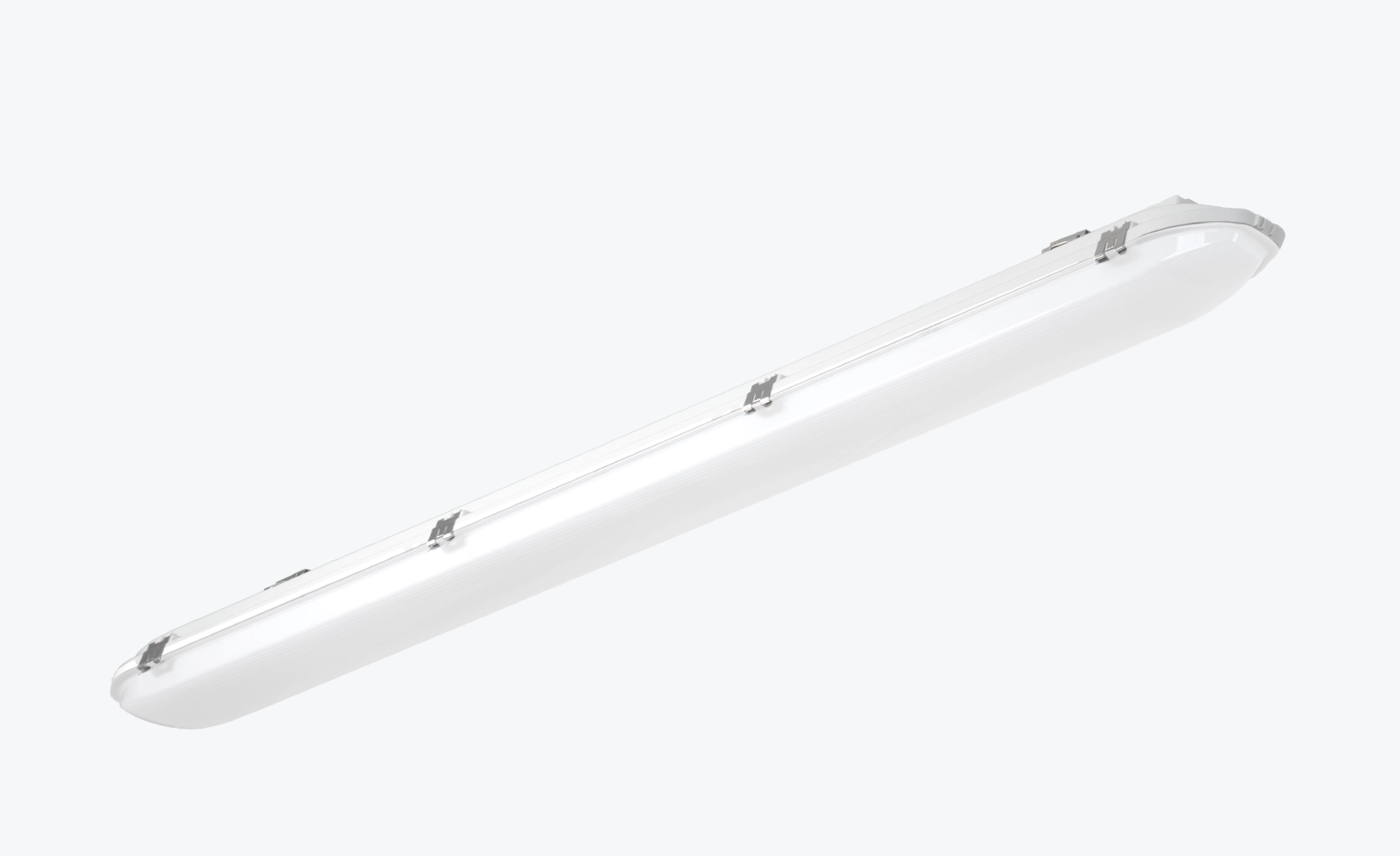

W LUM GEN 2

W LUM GEN 2 is an industrial luminaire designed for areas where moisture, dust, and mechanical stress are . The glass fiber reinforced housing protects the luminaire from external influences, while the PMMA diffuser provides uniform and reliable illumination of the workspace. The ideal solution for industrial environments where durability and flawless operation are key requirements.

High IP66 protection rating

High system efficiency.

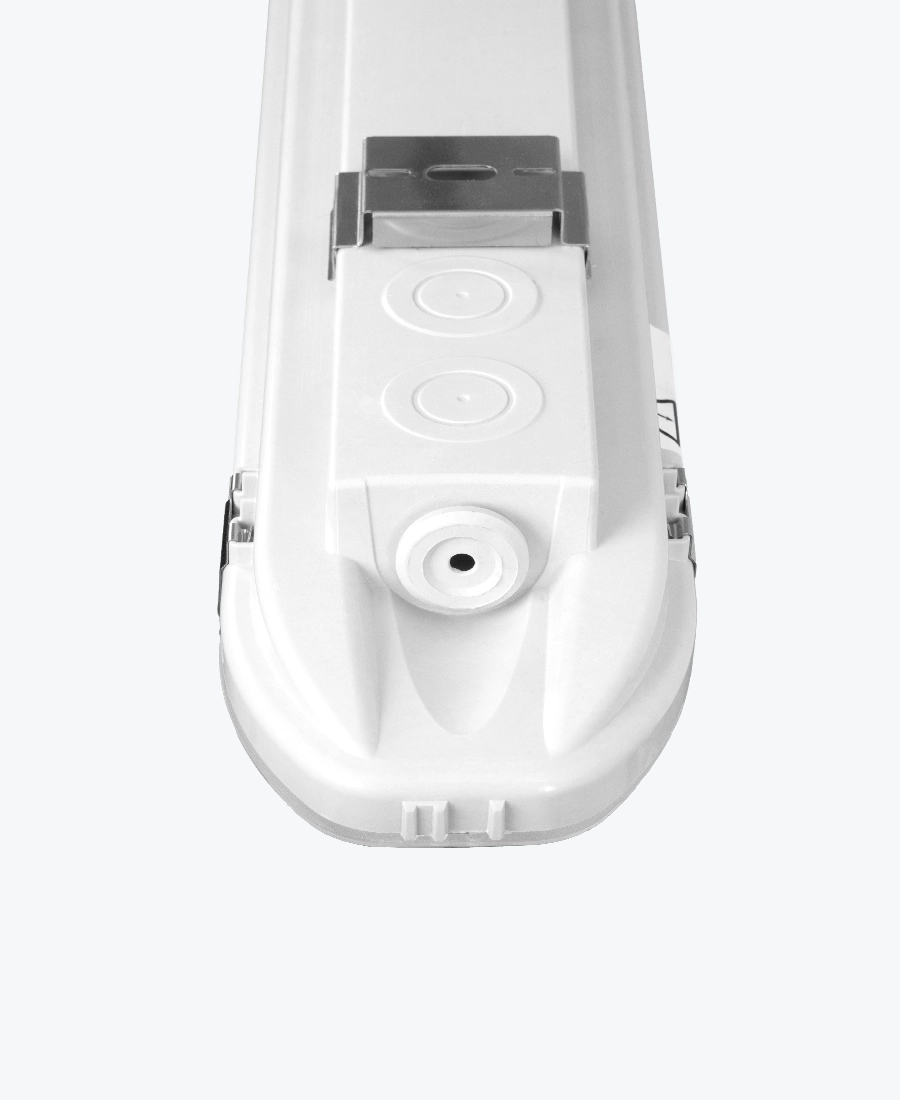

Quick access to connectors

More Send inquiry

Technical specifications

System efficiency [lm/W] to 170/166/163/160

Color rendering index (CRI, Ra) > 80

Power (W) 20 - 75

Luminous flux (lm) 2480 - 11000

Correlated color temperature (CCT, K) 4000

Intrusion protection IP66

Operating temperature [°C] from -20 to +45

Mounting Direct mounting with bracket or mounting on steel wire

Regulation None, Senzor gibanja, DALI, PushDIM, Corridor

Lifetime [h] L80B10 > 50000

Standard warranty (years) 5

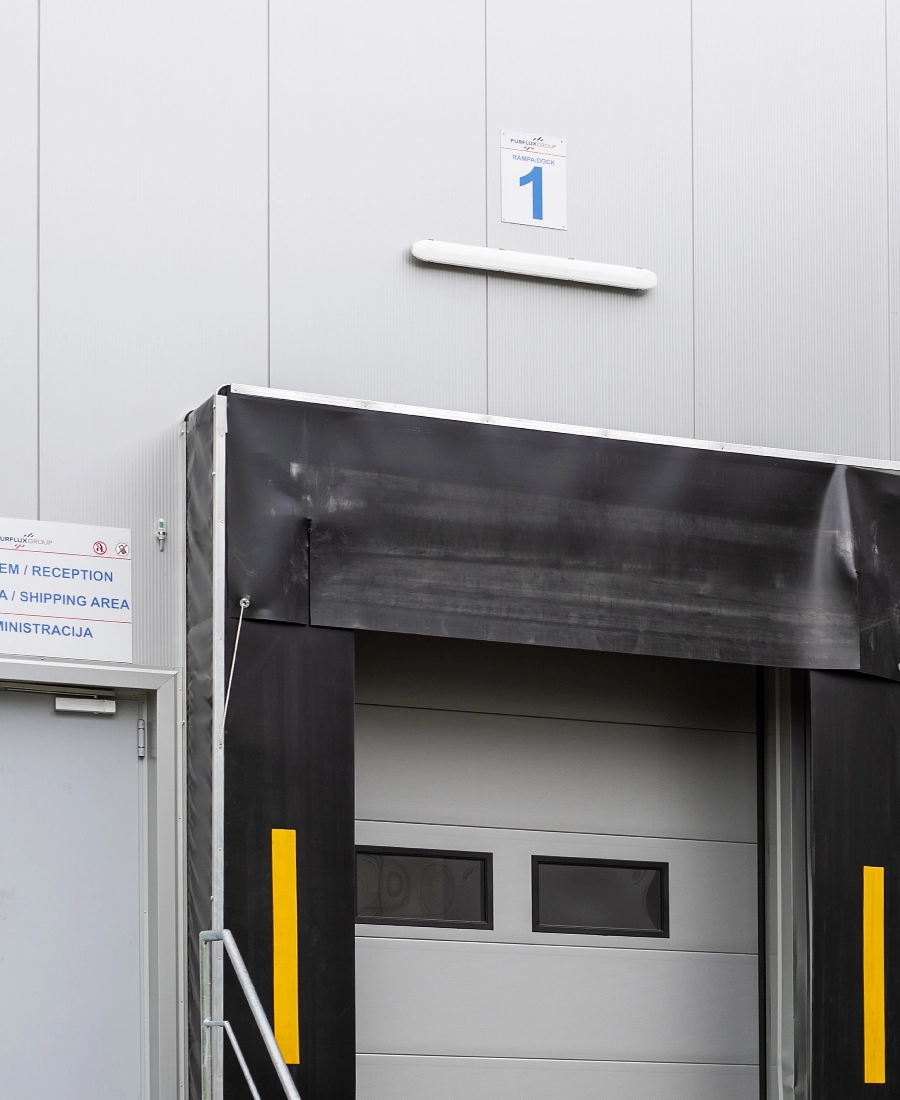

Areas of application Garages, Production facilities, Workshops, Corridors

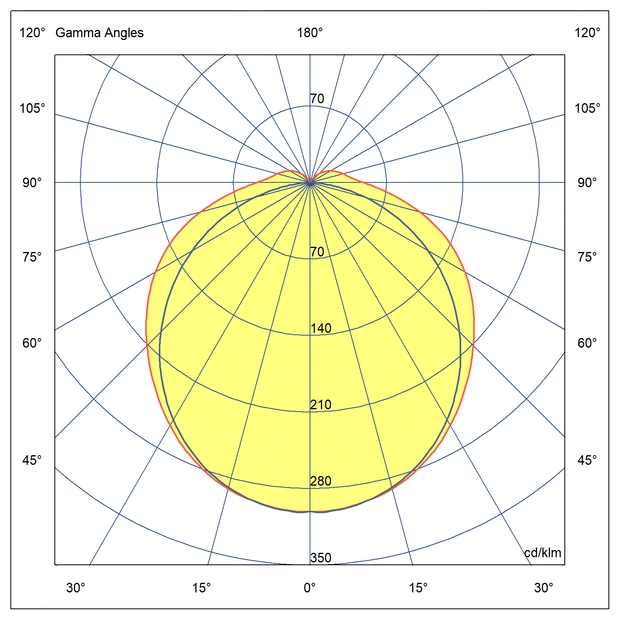

Optics

000

Suitable for industrial facilities with lower ceilings

Versions

Correlated color temperature (CCT, K) 4000	Power (W) 20 (phase out) 22 (phase out) 20/24 (gen 3) 30 (phase out) 34 (phase out) 25/32/38/44 (gen 3) 44 (phase out) 30/38/46/53 (gen 3) 54 (phase out) 72 (gen 3) 75 (phase out)	Luminous flux (lm) 2480 3450 3300/4000 5100 5300 4200/5300/6200/7000 7500 5100/6300/7500/8500 8800 10700 11000	Regulation None Senzor gibanja DALI PushDIM Corridor	Dimensions (W x H x D) [mm] 102 x 80 x 605 102 x 80 x 1174 102 x 80 x 1454	Reconnection None Z	Emergency lighting No Yes
4000	20/24 (gen 3)	3300/4000	None	102 x 80 x 605	None	No
4000	20/24 (gen 3)	3300/4000	None	102 x 80 x 605	None	Yes
4000	20/24 (gen 3)	3300/4000	None	102 x 80 x 605	Z	No
4000	20/24 (gen 3)	3300/4000	None	102 x 80 x 605	Z	Yes
4000	20/24 (gen 3)	3300/4000	Motion sensor	102 x 80 x 605	None	No
4000	20/24 (gen 3)	3300/4000	Motion sensor	102 x 80 x 605	None	Yes
4000	20/24 (gen 3)	3300/4000	Motion sensor	102 x 80 x 605	Z	No
4000	20/24 (gen 3)	3300/4000	Motion sensor	102 x 80 x 605	Z	Yes
4000	20/24 (gen 3)	3300/4000	DALI	102 x 80 x 605	None	No
4000	20/24 (gen 3)	3300/4000	DALI	102 x 80 x 605	None	Yes
4000	20/24 (gen 3)	3300/4000	DALI	102 x 80 x 605	Z	No
4000	20/24 (gen 3)	3300/4000	DALI	102 x 80 x 605	Z	Yes
4000	20/24 (gen 3)	3300/4000	PushDIM	102 x 80 x 605	None	No
4000	20/24 (gen 3)	3300/4000	PushDIM	102 x 80 x 605	None	Yes
4000	20/24 (gen 3)	3300/4000	PushDIM	102 x 80 x 605	Z	No
4000	20/24 (gen 3)	3300/4000	PushDIM	102 x 80 x 605	Z	Yes
4000	20/24 (gen 3)	3300/4000	Corridor	102 x 80 x 605	None	No
4000	20/24 (gen 3)	3300/4000	Corridor	102 x 80 x 605	None	Yes
4000	20/24 (gen 3)	3300/4000	Corridor	102 x 80 x 605	Z	No
4000	20/24 (gen 3)	3300/4000	Corridor	102 x 80 x 605	Z	Yes
4000	20 (phase out)	2480	None	102 x 80 x 605	None	No
4000	20 (phase out)	2480	None	102 x 80 x 605	None	Yes
4000	20 (phase out)	2480	None	102 x 80 x 605	Z	No
4000	20 (phase out)	2480	None	102 x 80 x 605	Z	Yes
4000	20 (phase out)	2480	Motion sensor	102 x 80 x 605	None	No
4000	20 (phase out)	2480	Motion sensor	102 x 80 x 605	None	Yes
4000	20 (phase out)	2480	Motion sensor	102 x 80 x 605	Z	No
4000	20 (phase out)	2480	Motion sensor	102 x 80 x 605	Z	Yes
4000	20 (phase out)	2480	DALI	102 x 80 x 605	None	No
4000	20 (phase out)	2480	DALI	102 x 80 x 605	None	Yes
4000	20 (phase out)	2480	DALI	102 x 80 x 605	Z	No
4000	20 (phase out)	2480	DALI	102 x 80 x 605	Z	Yes
4000	20 (phase out)	2480	PushDIM	102 x 80 x 605	None	No
4000	20 (phase out)	2480	PushDIM	102 x 80 x 605	None	Yes
4000	20 (phase out)	2480	PushDIM	102 x 80 x 605	Z	No
4000	20 (phase out)	2480	PushDIM	102 x 80 x 605	Z	Yes
4000	20 (phase out)	2480	Corridor	102 x 80 x 605	None	No
4000	20 (phase out)	2480	Corridor	102 x 80 x 605	None	Yes
4000	20 (phase out)	2480	Corridor	102 x 80 x 605	Z	No
4000	20 (phase out)	2480	Corridor	102 x 80 x 605	Z	Yes
4000	22 (phase out)	3450	None	102 x 80 x 1174	None	No
4000	22 (phase out)	3450	None	102 x 80 x 1174	None	Yes
4000	22 (phase out)	3450	None	102 x 80 x 1174	Z	No
4000	22 (phase out)	3450	None	102 x 80 x 1174	Z	Yes
4000	22 (phase out)	3450	Motion sensor	102 x 80 x 1174	None	No
4000	22 (phase out)	3450	Motion sensor	102 x 80 x 1174	None	Yes
4000	22 (phase out)	3450	Motion sensor	102 x 80 x 1174	Z	No
4000	22 (phase out)	3450	Motion sensor	102 x 80 x 1174	Z	Yes
4000	22 (phase out)	3450	DALI	102 x 80 x 1174	None	No
4000	22 (phase out)	3450	DALI	102 x 80 x 1174	None	Yes
4000	22 (phase out)	3450	DALI	102 x 80 x 1174	Z	No
4000	22 (phase out)	3450	DALI	102 x 80 x 1174	Z	Yes
4000	22 (phase out)	3450	PushDIM	102 x 80 x 1174	None	No
4000	22 (phase out)	3450	PushDIM	102 x 80 x 1174	None	Yes
4000	22 (phase out)	3450	PushDIM	102 x 80 x 1174	Z	No
4000	22 (phase out)	3450	PushDIM	102 x 80 x 1174	Z	Yes
4000	22 (phase out)	3450	Corridor	102 x 80 x 1174	None	No
4000	22 (phase out)	3450	Corridor	102 x 80 x 1174	None	Yes
4000	22 (phase out)	3450	Corridor	102 x 80 x 1174	Z	No
4000	22 (phase out)	3450	Corridor	102 x 80 x 1174	Z	Yes
4000	30 (phase out)	5100	None	102 x 80 x 1454	None	No
4000	30 (phase out)	5100	None	102 x 80 x 1454	None	Yes
4000	30 (phase out)	5100	None	102 x 80 x 1454	Z	No
4000	30 (phase out)	5100	None	102 x 80 x 1454	Z	Yes
4000	30 (phase out)	5100	Motion sensor	102 x 80 x 1454	None	No
4000	30 (phase out)	5100	Motion sensor	102 x 80 x 1454	None	Yes
4000	30 (phase out)	5100	Motion sensor	102 x 80 x 1454	Z	No
4000	30 (phase out)	5100	Motion sensor	102 x 80 x 1454	Z	Yes
4000	30 (phase out)	5100	DALI	102 x 80 x 1454	None	No
4000	30 (phase out)	5100	DALI	102 x 80 x 1454	None	Yes
4000	30 (phase out)	5100	DALI	102 x 80 x 1454	Z	No
4000	30 (phase out)	5100	DALI	102 x 80 x 1454	Z	Yes
4000	30 (phase out)	5100	PushDIM	102 x 80 x 1454	None	No
4000	30 (phase out)	5100	PushDIM	102 x 80 x 1454	None	Yes
4000	30 (phase out)	5100	PushDIM	102 x 80 x 1454	Z	No
4000	30 (phase out)	5100	PushDIM	102 x 80 x 1454	Z	Yes
4000	30 (phase out)	5100	Corridor	102 x 80 x 1454	None	No
4000	30 (phase out)	5100	Corridor	102 x 80 x 1454	None	Yes
4000	30 (phase out)	5100	Corridor	102 x 80 x 1454	Z	No
4000	30 (phase out)	5100	Corridor	102 x 80 x 1454	Z	Yes
4000	34 (phase out)	5300	None	102 x 80 x 1174	None	No
4000	34 (phase out)	5300	None	102 x 80 x 1174	None	Yes
4000	34 (phase out)	5300	None	102 x 80 x 1174	Z	No
4000	34 (phase out)	5300	None	102 x 80 x 1174	Z	Yes
4000	34 (phase out)	5300	Motion sensor	102 x 80 x 1174	None	No
4000	34 (phase out)	5300	Motion sensor	102 x 80 x 1174	None	Yes
4000	34 (phase out)	5300	Motion sensor	102 x 80 x 1174	Z	No
4000	34 (phase out)	5300	Motion sensor	102 x 80 x 1174	Z	Yes
4000	34 (phase out)	5300	DALI	102 x 80 x 1174	None	No
4000	34 (phase out)	5300	DALI	102 x 80 x 1174	None	Yes
4000	34 (phase out)	5300	DALI	102 x 80 x 1174	Z	No
4000	34 (phase out)	5300	DALI	102 x 80 x 1174	Z	Yes
4000	34 (phase out)	5300	PushDIM	102 x 80 x 1174	None	No
4000	34 (phase out)	5300	PushDIM	102 x 80 x 1174	None	Yes
4000	34 (phase out)	5300	PushDIM	102 x 80 x 1174	Z	No
4000	34 (phase out)	5300	PushDIM	102 x 80 x 1174	Z	Yes
4000	34 (phase out)	5300	Corridor	102 x 80 x 1174	None	No
4000	34 (phase out)	5300	Corridor	102 x 80 x 1174	None	Yes
4000	34 (phase out)	5300	Corridor	102 x 80 x 1174	Z	No
4000	34 (phase out)	5300	Corridor	102 x 80 x 1174	Z	Yes
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	None	102 x 80 x 1174	None	No
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	None	102 x 80 x 1174	None	Yes
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	None	102 x 80 x 1174	Z	No
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	None	102 x 80 x 1174	Z	Yes
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	Motion sensor	102 x 80 x 1174	None	No
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	Motion sensor	102 x 80 x 1174	None	Yes
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	Motion sensor	102 x 80 x 1174	Z	No
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	Motion sensor	102 x 80 x 1174	Z	Yes
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	DALI	102 x 80 x 1174	None	No
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	DALI	102 x 80 x 1174	None	Yes
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	DALI	102 x 80 x 1174	Z	No
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	DALI	102 x 80 x 1174	Z	Yes
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	PushDIM	102 x 80 x 1174	None	No
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	PushDIM	102 x 80 x 1174	None	Yes
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	PushDIM	102 x 80 x 1174	Z	No
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	PushDIM	102 x 80 x 1174	Z	Yes
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	Corridor	102 x 80 x 1174	None	No
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	Corridor	102 x 80 x 1174	None	Yes
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	Corridor	102 x 80 x 1174	Z	No
4000	25/32/38/44 (gen 3)	4200/5300/6200/7000	Corridor	102 x 80 x 1174	Z	Yes
4000	44 (phase out)	7500	None	102 x 80 x 1454	None	No
4000	44 (phase out)	7500	None	102 x 80 x 1454	None	Yes
4000	44 (phase out)	7500	None	102 x 80 x 1454	Z	No
4000	44 (phase out)	7500	None	102 x 80 x 1454	Z	Yes
4000	44 (phase out)	7500	Motion sensor	102 x 80 x 1454	None	No
4000	44 (phase out)	7500	Motion sensor	102 x 80 x 1454	None	Yes
4000	44 (phase out)	7500	Motion sensor	102 x 80 x 1454	Z	No
4000	44 (phase out)	7500	Motion sensor	102 x 80 x 1454	Z	Yes
4000	44 (phase out)	7500	DALI	102 x 80 x 1454	None	No
4000	44 (phase out)	7500	DALI	102 x 80 x 1454	None	Yes
4000	44 (phase out)	7500	DALI	102 x 80 x 1454	Z	No
4000	44 (phase out)	7500	DALI	102 x 80 x 1454	Z	Yes
4000	44 (phase out)	7500	PushDIM	102 x 80 x 1454	None	No
4000	44 (phase out)	7500	PushDIM	102 x 80 x 1454	None	Yes
4000	44 (phase out)	7500	PushDIM	102 x 80 x 1454	Z	No
4000	44 (phase out)	7500	PushDIM	102 x 80 x 1454	Z	Yes
4000	44 (phase out)	7500	Corridor	102 x 80 x 1454	None	No
4000	44 (phase out)	7500	Corridor	102 x 80 x 1454	None	Yes
4000	44 (phase out)	7500	Corridor	102 x 80 x 1454	Z	No
4000	44 (phase out)	7500	Corridor	102 x 80 x 1454	Z	Yes
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	None	102 x 80 x 1454	None	No
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	None	102 x 80 x 1454	None	Yes
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	None	102 x 80 x 1454	Z	No
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	None	102 x 80 x 1454	Z	Yes
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	Motion sensor	102 x 80 x 1454	None	No
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	Motion sensor	102 x 80 x 1454	None	Yes
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	Motion sensor	102 x 80 x 1454	Z	No
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	Motion sensor	102 x 80 x 1454	Z	Yes
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	DALI	102 x 80 x 1454	None	No
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	DALI	102 x 80 x 1454	None	Yes
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	DALI	102 x 80 x 1454	Z	No
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	DALI	102 x 80 x 1454	Z	Yes
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	PushDIM	102 x 80 x 1454	None	No
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	PushDIM	102 x 80 x 1454	None	Yes
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	PushDIM	102 x 80 x 1454	Z	No
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	PushDIM	102 x 80 x 1454	Z	Yes
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	Corridor	102 x 80 x 1454	None	No
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	Corridor	102 x 80 x 1454	None	Yes
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	Corridor	102 x 80 x 1454	Z	No
4000	30/38/46/53 (gen 3)	5100/6300/7500/8500	Corridor	102 x 80 x 1454	Z	Yes
4000	54 (phase out)	8800	None	102 x 80 x 1174	None	No
4000	54 (phase out)	8800	None	102 x 80 x 1174	None	Yes
4000	54 (phase out)	8800	None	102 x 80 x 1174	Z	No
4000	54 (phase out)	8800	None	102 x 80 x 1174	Z	Yes
4000	54 (phase out)	8800	Motion sensor	102 x 80 x 1174	None	No
4000	54 (phase out)	8800	Motion sensor	102 x 80 x 1174	None	Yes
4000	54 (phase out)	8800	Motion sensor	102 x 80 x 1174	Z	No
4000	54 (phase out)	8800	Motion sensor	102 x 80 x 1174	Z	Yes
4000	54 (phase out)	8800	DALI	102 x 80 x 1174	None	No
4000	54 (phase out)	8800	DALI	102 x 80 x 1174	None	Yes
4000	54 (phase out)	8800	DALI	102 x 80 x 1174	Z	No
4000	54 (phase out)	8800	DALI	102 x 80 x 1174	Z	Yes
4000	54 (phase out)	8800	PushDIM	102 x 80 x 1174	None	No
4000	54 (phase out)	8800	PushDIM	102 x 80 x 1174	None	Yes
4000	54 (phase out)	8800	PushDIM	102 x 80 x 1174	Z	No
4000	54 (phase out)	8800	PushDIM	102 x 80 x 1174	Z	Yes
4000	54 (phase out)	8800	Corridor	102 x 80 x 1174	None	No
4000	54 (phase out)	8800	Corridor	102 x 80 x 1174	None	Yes
4000	54 (phase out)	8800	Corridor	102 x 80 x 1174	Z	No
4000	54 (phase out)	8800	Corridor	102 x 80 x 1174	Z	Yes
4000	72 (gen 3)	10700	None	102 x 80 x 1454	None	No
4000	72 (gen 3)	10700	None	102 x 80 x 1454	None	Yes
4000	72 (gen 3)	10700	None	102 x 80 x 1454	Z	No
4000	72 (gen 3)	10700	None	102 x 80 x 1454	Z	Yes
4000	72 (gen 3)	10700	Motion sensor	102 x 80 x 1454	None	No
4000	72 (gen 3)	10700	Motion sensor	102 x 80 x 1454	None	Yes
4000	72 (gen 3)	10700	Motion sensor	102 x 80 x 1454	Z	No
4000	72 (gen 3)	10700	Motion sensor	102 x 80 x 1454	Z	Yes
4000	72 (gen 3)	10700	DALI	102 x 80 x 1454	None	No
4000	72 (gen 3)	10700	DALI	102 x 80 x 1454	None	Yes
4000	72 (gen 3)	10700	DALI	102 x 80 x 1454	Z	No
4000	72 (gen 3)	10700	DALI	102 x 80 x 1454	Z	Yes
4000	72 (gen 3)	10700	PushDIM	102 x 80 x 1454	None	No
4000	72 (gen 3)	10700	PushDIM	102 x 80 x 1454	None	Yes
4000	72 (gen 3)	10700	PushDIM	102 x 80 x 1454	Z	No
4000	72 (gen 3)	10700	PushDIM	102 x 80 x 1454	Z	Yes
4000	72 (gen 3)	10700	Corridor	102 x 80 x 1454	None	No
4000	72 (gen 3)	10700	Corridor	102 x 80 x 1454	None	Yes
4000	72 (gen 3)	10700	Corridor	102 x 80 x 1454	Z	No
4000	72 (gen 3)	10700	Corridor	102 x 80 x 1454	Z	Yes
4000	75 (phase out)	11000	None	102 x 80 x 1454	None	No
4000	75 (phase out)	11000	None	102 x 80 x 1454	None	Yes
4000	75 (phase out)	11000	None	102 x 80 x 1454	Z	No
4000	75 (phase out)	11000	None	102 x 80 x 1454	Z	Yes
4000	75 (phase out)	11000	Motion sensor	102 x 80 x 1454	None	No
4000	75 (phase out)	11000	Motion sensor	102 x 80 x 1454	None	Yes
4000	75 (phase out)	11000	Motion sensor	102 x 80 x 1454	Z	No
4000	75 (phase out)	11000	Motion sensor	102 x 80 x 1454	Z	Yes
4000	75 (phase out)	11000	DALI	102 x 80 x 1454	None	No
4000	75 (phase out)	11000	DALI	102 x 80 x 1454	None	Yes
4000	75 (phase out)	11000	DALI	102 x 80 x 1454	Z	No
4000	75 (phase out)	11000	DALI	102 x 80 x 1454	Z	Yes
4000	75 (phase out)	11000	PushDIM	102 x 80 x 1454	None	No
4000	75 (phase out)	11000	PushDIM	102 x 80 x 1454	None	Yes
4000	75 (phase out)	11000	PushDIM	102 x 80 x 1454	Z	No
4000	75 (phase out)	11000	PushDIM	102 x 80 x 1454	Z	Yes
4000	75 (phase out)	11000	Corridor	102 x 80 x 1454	None	No
4000	75 (phase out)	11000	Corridor	102 x 80 x 1454	None	Yes
4000	75 (phase out)	11000	Corridor	102 x 80 x 1454	Z	No
4000	75 (phase out)	11000	Corridor	102 x 80 x 1454	Z	Yes
Show more Hide
