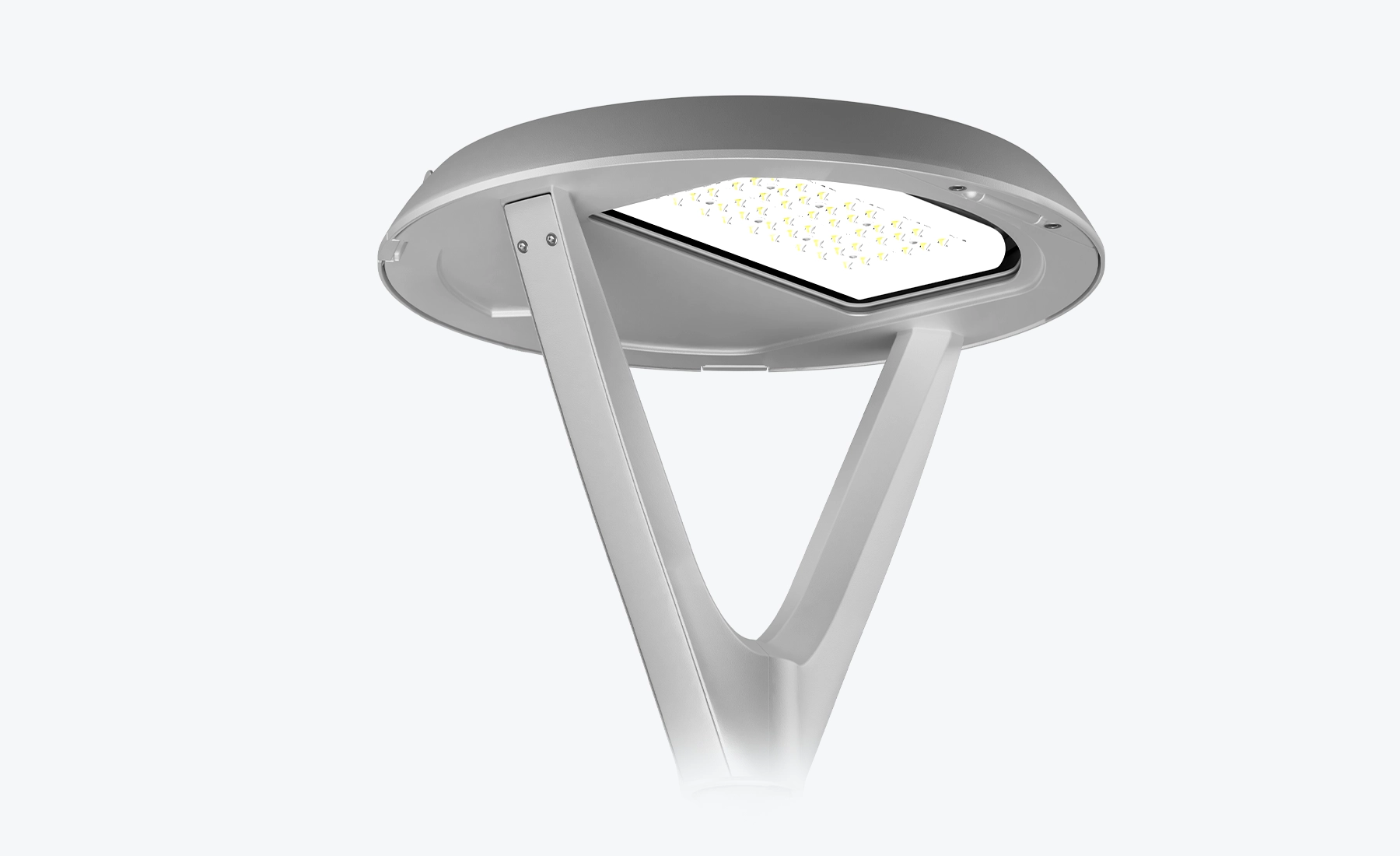

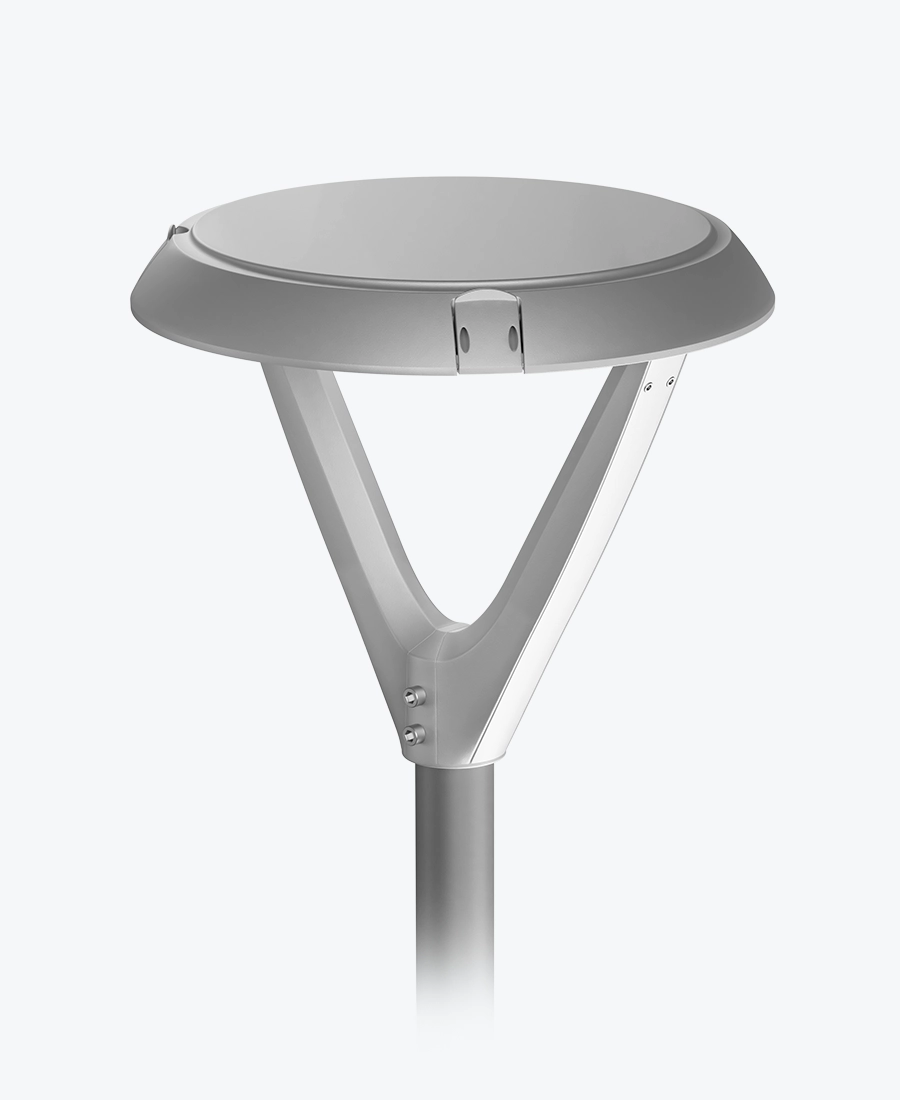

LUMENIA | Luminaires U LUM GEN 2

STREET LIGHTING

U LUM GEN 2

With its understated and contemporary design, U LUM naturally complements a variety of urban environments, from historic to modern. It contributes to greater safety for pedestrians, cyclists, and children, while its energy luminous efficacy supports sustainable urban development and reduces environmental impact.

Overheating protection

Lower consumption

Control of luminous flux (lm) based on time

Constant luminous flux (lm) - CLO

Elegant and modern design

More Send inquiry

Technical specifications

System efficiency [lm/W] to 150

Color rendering index (CRI, Ra) >70

Power (W) 20 - 40

Luminous flux (lm) 2700 - 6000

Correlated color temperature (CCT, K) 2700, 3000, 4000

Intrusion protection IP66

Operating temperature [°C] from -40 to +55

Regulation None, DALI, 1-10V

Lifetime [h] L80B10 > 100000

Standard warranty (years) 5

Standards EN 55015:2013-08-01; EN61547:2009-08-01; EN 61000-3-2: 2006-04-01 + A1: 2009-07-01 + A2 2009-07-01; EN 61000-3- 3:2013-08-01; IEC 60598-2-3:2002 (Third Edition) + A1:2011 Used in conjunction with IEC 60598-1:2014 (Eighth Edition)

Areas of application Modern urban areas, Parks and gardens, Pedestrian areas, Bicycle paths

Optics

000

For pedestrian areas and parks

Versions

Correlated color temperature (CCT, K) 2700 3000 4000	Power (W) 20 30 40	Luminous flux (lm) 2700 2800 3000 4050 4200 4500 5400 5600 6000	Regulation None DALI 1-10V	Electrical protection class I II	Connections Zhaga zgoraj Zhaga zgoraj + spodaj NEMA zgoraj Zhaga spodaj None
2700	20	2700	None	I	Zhaga above
2700	20	2700	None	I	Zhaga top + bottom
2700	20	2700	None	I	NEMA top
2700	20	2700	None	I	Zhaga below
2700	20	2700	None	I	None
2700	20	2700	DALI	I	Zhaga above
2700	20	2700	DALI	I	Zhaga top + bottom
2700	20	2700	DALI	I	NEMA top
2700	20	2700	DALI	I	Zhaga below
2700	20	2700	DALI	I	None
2700	20	2700	1-10V	I	Zhaga above
2700	20	2700	1-10V	I	Zhaga top + bottom
2700	20	2700	1-10V	I	NEMA top
2700	20	2700	1-10V	I	Zhaga below
2700	20	2700	1-10V	I	None
2700	20	2700	None	II	Zhaga above
2700	20	2700	None	II	Zhaga top + bottom
2700	20	2700	None	II	NEMA top
2700	20	2700	None	II	Zhaga below
2700	20	2700	None	II	None
2700	20	2700	DALI	II	Zhaga above
2700	20	2700	DALI	II	Zhaga top + bottom
2700	20	2700	DALI	II	NEMA top
2700	20	2700	DALI	II	Zhaga below
2700	20	2700	DALI	II	None
2700	20	2700	1-10V	II	Zhaga above
2700	20	2700	1-10V	II	Zhaga top + bottom
2700	20	2700	1-10V	II	NEMA top
2700	20	2700	1-10V	II	Zhaga below
2700	20	2700	1-10V	II	None
3000	20	2800	None	I	Zhaga above
3000	20	2800	None	I	Zhaga top + bottom
3000	20	2800	None	I	NEMA top
3000	20	2800	None	I	Zhaga below
3000	20	2800	None	I	None
3000	20	2800	DALI	I	Zhaga above
3000	20	2800	DALI	I	Zhaga top + bottom
3000	20	2800	DALI	I	NEMA top
3000	20	2800	DALI	I	Zhaga below
3000	20	2800	DALI	I	None
3000	20	2800	1-10V	I	Zhaga above
3000	20	2800	1-10V	I	Zhaga top + bottom
3000	20	2800	1-10V	I	NEMA top
3000	20	2800	1-10V	I	Zhaga below
3000	20	2800	1-10V	I	None
3000	20	2800	None	II	Zhaga above
3000	20	2800	None	II	Zhaga top + bottom
3000	20	2800	None	II	NEMA top
3000	20	2800	None	II	Zhaga below
3000	20	2800	None	II	None
3000	20	2800	DALI	II	Zhaga above
3000	20	2800	DALI	II	Zhaga top + bottom
3000	20	2800	DALI	II	NEMA top
3000	20	2800	DALI	II	Zhaga below
3000	20	2800	DALI	II	None
3000	20	2800	1-10V	II	Zhaga above
3000	20	2800	1-10V	II	Zhaga top + bottom
3000	20	2800	1-10V	II	NEMA top
3000	20	2800	1-10V	II	Zhaga below
3000	20	2800	1-10V	II	None
4000	20	3000	None	I	Zhaga above
4000	20	3000	None	I	Zhaga top + bottom
4000	20	3000	None	I	NEMA top
4000	20	3000	None	I	Zhaga below
4000	20	3000	None	I	None
4000	20	3000	DALI	I	Zhaga above
4000	20	3000	DALI	I	Zhaga top + bottom
4000	20	3000	DALI	I	NEMA top
4000	20	3000	DALI	I	Zhaga below
4000	20	3000	DALI	I	None
4000	20	3000	1-10V	I	Zhaga above
4000	20	3000	1-10V	I	Zhaga top + bottom
4000	20	3000	1-10V	I	NEMA top
4000	20	3000	1-10V	I	Zhaga below
4000	20	3000	1-10V	I	None
4000	20	3000	None	II	Zhaga above
4000	20	3000	None	II	Zhaga top + bottom
4000	20	3000	None	II	NEMA top
4000	20	3000	None	II	Zhaga below
4000	20	3000	None	II	None
4000	20	3000	DALI	II	Zhaga above
4000	20	3000	DALI	II	Zhaga top + bottom
4000	20	3000	DALI	II	NEMA top
4000	20	3000	DALI	II	Zhaga below
4000	20	3000	DALI	II	None
4000	20	3000	1-10V	II	Zhaga above
4000	20	3000	1-10V	II	Zhaga top + bottom
4000	20	3000	1-10V	II	NEMA top
4000	20	3000	1-10V	II	Zhaga below
4000	20	3000	1-10V	II	None
2700	30	4050	None	I	Zhaga above
2700	30	4050	None	I	Zhaga top + bottom
2700	30	4050	None	I	NEMA top
2700	30	4050	None	I	Zhaga below
2700	30	4050	None	I	None
2700	30	4050	DALI	I	Zhaga above
2700	30	4050	DALI	I	Zhaga top + bottom
2700	30	4050	DALI	I	NEMA top
2700	30	4050	DALI	I	Zhaga below
2700	30	4050	DALI	I	None
2700	30	4050	1-10V	I	Zhaga above
2700	30	4050	1-10V	I	Zhaga top + bottom
2700	30	4050	1-10V	I	NEMA top
2700	30	4050	1-10V	I	Zhaga below
2700	30	4050	1-10V	I	None
2700	30	4050	None	II	Zhaga above
2700	30	4050	None	II	Zhaga top + bottom
2700	30	4050	None	II	NEMA top
2700	30	4050	None	II	Zhaga below
2700	30	4050	None	II	None
2700	30	4050	DALI	II	Zhaga above
2700	30	4050	DALI	II	Zhaga top + bottom
2700	30	4050	DALI	II	NEMA top
2700	30	4050	DALI	II	Zhaga below
2700	30	4050	DALI	II	None
2700	30	4050	1-10V	II	Zhaga above
2700	30	4050	1-10V	II	Zhaga top + bottom
2700	30	4050	1-10V	II	NEMA top
2700	30	4050	1-10V	II	Zhaga below
2700	30	4050	1-10V	II	None
3000	30	4200	None	I	Zhaga above
3000	30	4200	None	I	Zhaga top + bottom
3000	30	4200	None	I	NEMA top
3000	30	4200	None	I	Zhaga below
3000	30	4200	None	I	None
3000	30	4200	DALI	I	Zhaga above
3000	30	4200	DALI	I	Zhaga top + bottom
3000	30	4200	DALI	I	NEMA top
3000	30	4200	DALI	I	Zhaga below
3000	30	4200	DALI	I	None
3000	30	4200	1-10V	I	Zhaga above
3000	30	4200	1-10V	I	Zhaga top + bottom
3000	30	4200	1-10V	I	NEMA top
3000	30	4200	1-10V	I	Zhaga below
3000	30	4200	1-10V	I	None
3000	30	4200	None	II	Zhaga above
3000	30	4200	None	II	Zhaga top + bottom
3000	30	4200	None	II	NEMA top
3000	30	4200	None	II	Zhaga below
3000	30	4200	None	II	None
3000	30	4200	DALI	II	Zhaga above
3000	30	4200	DALI	II	Zhaga top + bottom
3000	30	4200	DALI	II	NEMA top
3000	30	4200	DALI	II	Zhaga below
3000	30	4200	DALI	II	None
3000	30	4200	1-10V	II	Zhaga above
3000	30	4200	1-10V	II	Zhaga top + bottom
3000	30	4200	1-10V	II	NEMA top
3000	30	4200	1-10V	II	Zhaga below
3000	30	4200	1-10V	II	None
4000	30	4500	None	I	Zhaga above
4000	30	4500	None	I	Zhaga top + bottom
4000	30	4500	None	I	NEMA top
4000	30	4500	None	I	Zhaga below
4000	30	4500	None	I	None
4000	30	4500	DALI	I	Zhaga above
4000	30	4500	DALI	I	Zhaga top + bottom
4000	30	4500	DALI	I	NEMA top
4000	30	4500	DALI	I	Zhaga below
4000	30	4500	DALI	I	None
4000	30	4500	1-10V	I	Zhaga above
4000	30	4500	1-10V	I	Zhaga top + bottom
4000	30	4500	1-10V	I	NEMA top
4000	30	4500	1-10V	I	Zhaga below
4000	30	4500	1-10V	I	None
4000	30	4500	None	II	Zhaga above
4000	30	4500	None	II	Zhaga top + bottom
4000	30	4500	None	II	NEMA top
4000	30	4500	None	II	Zhaga below
4000	30	4500	None	II	None
4000	30	4500	DALI	II	Zhaga above
4000	30	4500	DALI	II	Zhaga top + bottom
4000	30	4500	DALI	II	NEMA top
4000	30	4500	DALI	II	Zhaga below
4000	30	4500	DALI	II	None
4000	30	4500	1-10V	II	Zhaga above
4000	30	4500	1-10V	II	Zhaga top + bottom
4000	30	4500	1-10V	II	NEMA top
4000	30	4500	1-10V	II	Zhaga below
4000	30	4500	1-10V	II	None
2700	40	5400	None	I	Zhaga above
2700	40	5400	None	I	Zhaga top + bottom
2700	40	5400	None	I	NEMA top
2700	40	5400	None	I	Zhaga below
2700	40	5400	None	I	None
2700	40	5400	DALI	I	Zhaga above
2700	40	5400	DALI	I	Zhaga top + bottom
2700	40	5400	DALI	I	NEMA top
2700	40	5400	DALI	I	Zhaga below
2700	40	5400	DALI	I	None
2700	40	5400	1-10V	I	Zhaga above
2700	40	5400	1-10V	I	Zhaga top + bottom
2700	40	5400	1-10V	I	NEMA top
2700	40	5400	1-10V	I	Zhaga below
2700	40	5400	1-10V	I	None
2700	40	5400	None	II	Zhaga above
2700	40	5400	None	II	Zhaga top + bottom
2700	40	5400	None	II	NEMA top
2700	40	5400	None	II	Zhaga below
2700	40	5400	None	II	None
2700	40	5400	DALI	II	Zhaga above
2700	40	5400	DALI	II	Zhaga top + bottom
2700	40	5400	DALI	II	NEMA top
2700	40	5400	DALI	II	Zhaga below
2700	40	5400	DALI	II	None
2700	40	5400	1-10V	II	Zhaga above
2700	40	5400	1-10V	II	Zhaga top + bottom
2700	40	5400	1-10V	II	NEMA top
2700	40	5400	1-10V	II	Zhaga below
2700	40	5400	1-10V	II	None
3000	40	5600	None	I	Zhaga above
3000	40	5600	None	I	Zhaga top + bottom
3000	40	5600	None	I	NEMA top
3000	40	5600	None	I	Zhaga below
3000	40	5600	None	I	None
3000	40	5600	DALI	I	Zhaga above
3000	40	5600	DALI	I	Zhaga top + bottom
3000	40	5600	DALI	I	NEMA top
3000	40	5600	DALI	I	Zhaga below
3000	40	5600	DALI	I	None
3000	40	5600	1-10V	I	Zhaga above
3000	40	5600	1-10V	I	Zhaga top + bottom
3000	40	5600	1-10V	I	NEMA top
3000	40	5600	1-10V	I	Zhaga below
3000	40	5600	1-10V	I	None
3000	40	5600	None	II	Zhaga above
3000	40	5600	None	II	Zhaga top + bottom
3000	40	5600	None	II	NEMA top
3000	40	5600	None	II	Zhaga below
3000	40	5600	None	II	None
3000	40	5600	DALI	II	Zhaga above
3000	40	5600	DALI	II	Zhaga top + bottom
3000	40	5600	DALI	II	NEMA top
3000	40	5600	DALI	II	Zhaga below
3000	40	5600	DALI	II	None
3000	40	5600	1-10V	II	Zhaga above
3000	40	5600	1-10V	II	Zhaga top + bottom
3000	40	5600	1-10V	II	NEMA top
3000	40	5600	1-10V	II	Zhaga below
3000	40	5600	1-10V	II	None
4000	40	6000	None	I	Zhaga above
4000	40	6000	None	I	Zhaga top + bottom
4000	40	6000	None	I	NEMA top
4000	40	6000	None	I	Zhaga below
4000	40	6000	None	I	None
4000	40	6000	DALI	I	Zhaga above
4000	40	6000	DALI	I	Zhaga top + bottom
4000	40	6000	DALI	I	NEMA top
4000	40	6000	DALI	I	Zhaga below
4000	40	6000	DALI	I	None
4000	40	6000	1-10V	I	Zhaga above
4000	40	6000	1-10V	I	Zhaga top + bottom
4000	40	6000	1-10V	I	NEMA top
4000	40	6000	1-10V	I	Zhaga below
4000	40	6000	1-10V	I	None
4000	40	6000	None	II	Zhaga above
4000	40	6000	None	II	Zhaga top + bottom
4000	40	6000	None	II	NEMA top
4000	40	6000	None	II	Zhaga below
4000	40	6000	None	II	None
4000	40	6000	DALI	II	Zhaga above
4000	40	6000	DALI	II	Zhaga top + bottom
4000	40	6000	DALI	II	NEMA top
4000	40	6000	DALI	II	Zhaga below
4000	40	6000	DALI	II	None
4000	40	6000	1-10V	II	Zhaga above
4000	40	6000	1-10V	II	Zhaga top + bottom
4000	40	6000	1-10V	II	NEMA top
4000	40	6000	1-10V	II	Zhaga below
4000	40	6000	1-10V	II	None
Show more Hide
