LUMENIA | Luminaires I LUM

Direct and indirect light distribution

HCL (Human Centric Lighting)
Follows the natural rhythm of the day
Adjusts light intensity and color
Supports biological processes in the body

INDOOR LIGHTING

I LUM

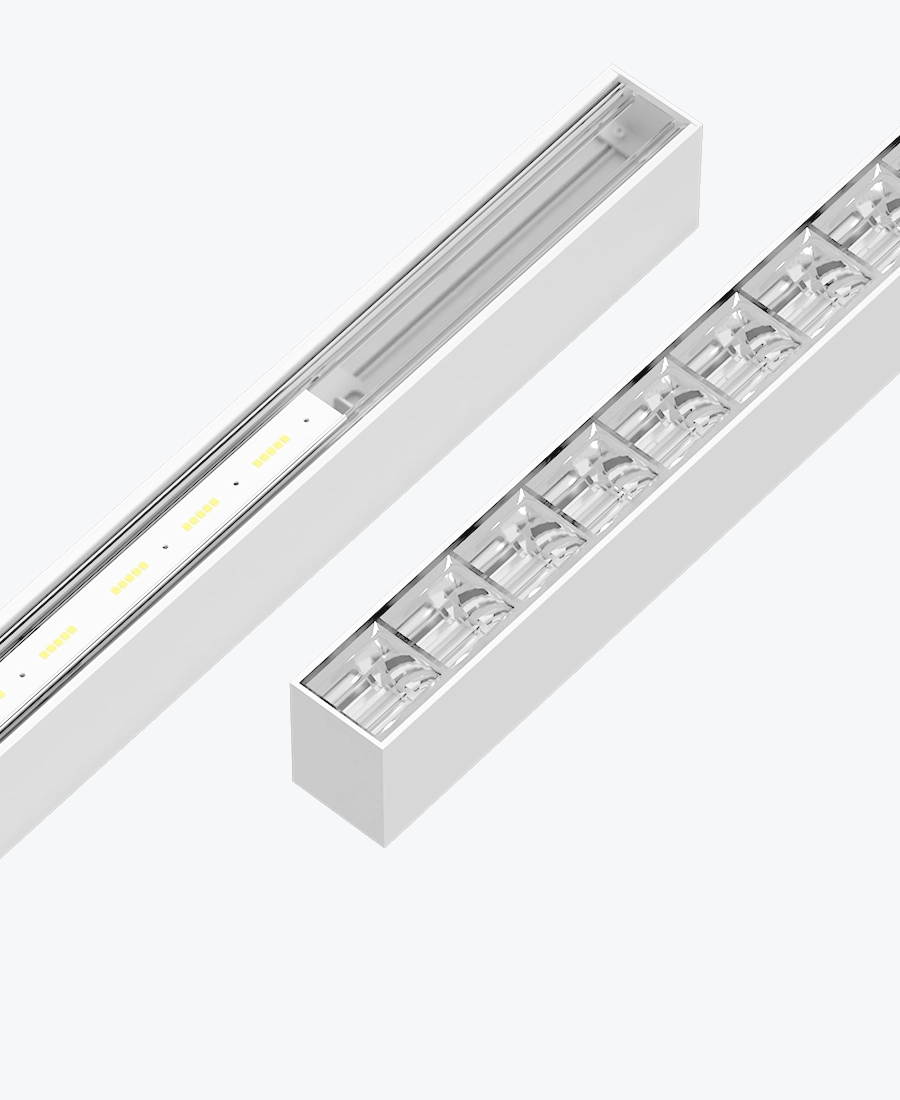

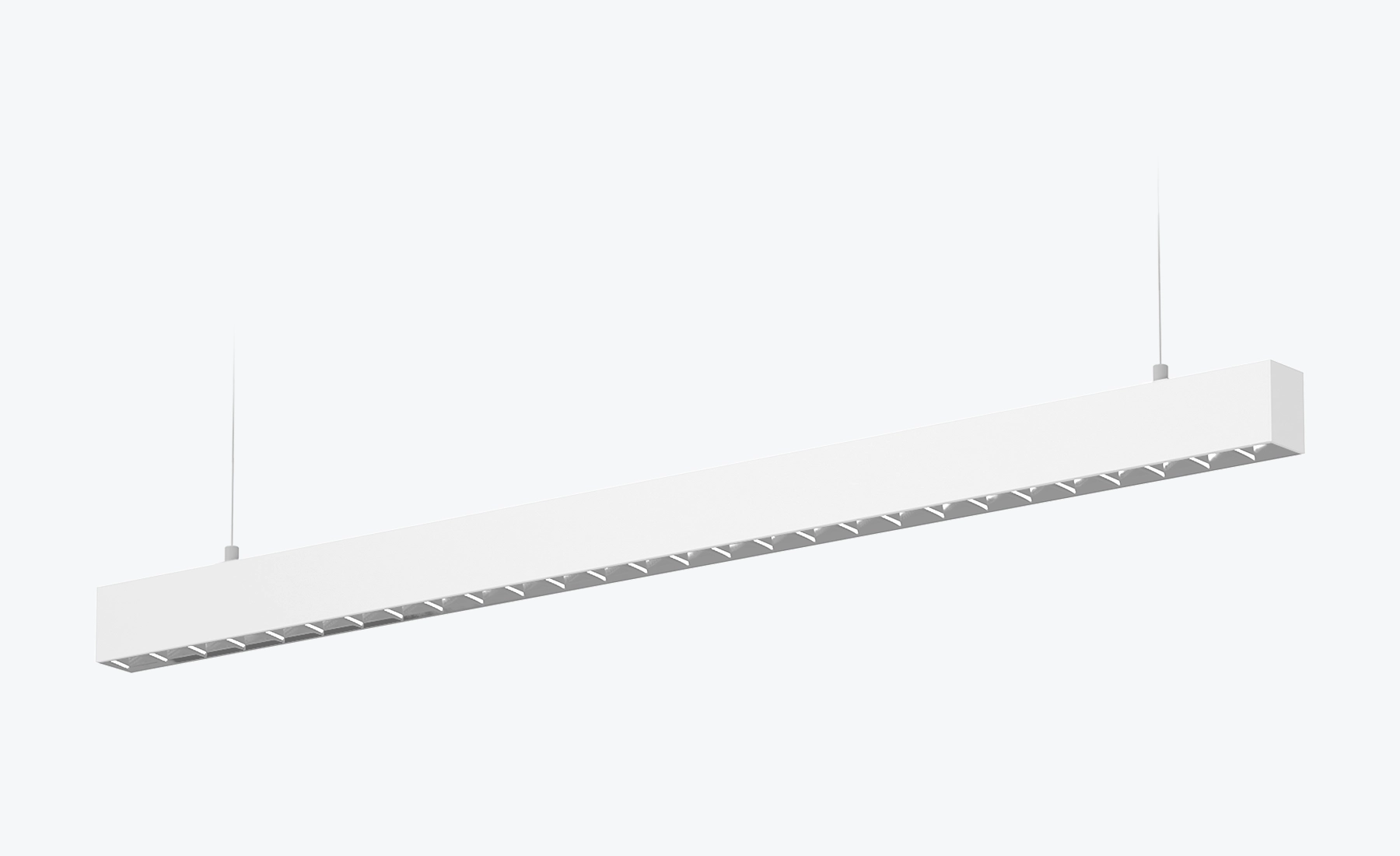

I LUM is an elegant linear luminaire with a minimalist aluminum housing without visible screws. It combines direct and indirect light and allows dimming and a choice of different light distributions – for general, asymmetrical or accent lighting of walls and shelves. Available in different lengths to perfectly match the architecture of the space.

Extruded aluminum housing

Elegant and compact

Simetrična porazdelitev svetlobe

Direct and indirect light distribution

More Send inquiry

Technical specifications

System efficiency [lm/W] to 111

Color rendering index (CRI, Ra) > 80

Power (W) 30 - 45

Luminous flux (lm) 3000 - 5063

Correlated color temperature (CCT, K) HCL - adjustable from 2700 to 5400, 4000

Intrusion protection IP20

Operating temperature [°C] from -20 to +35

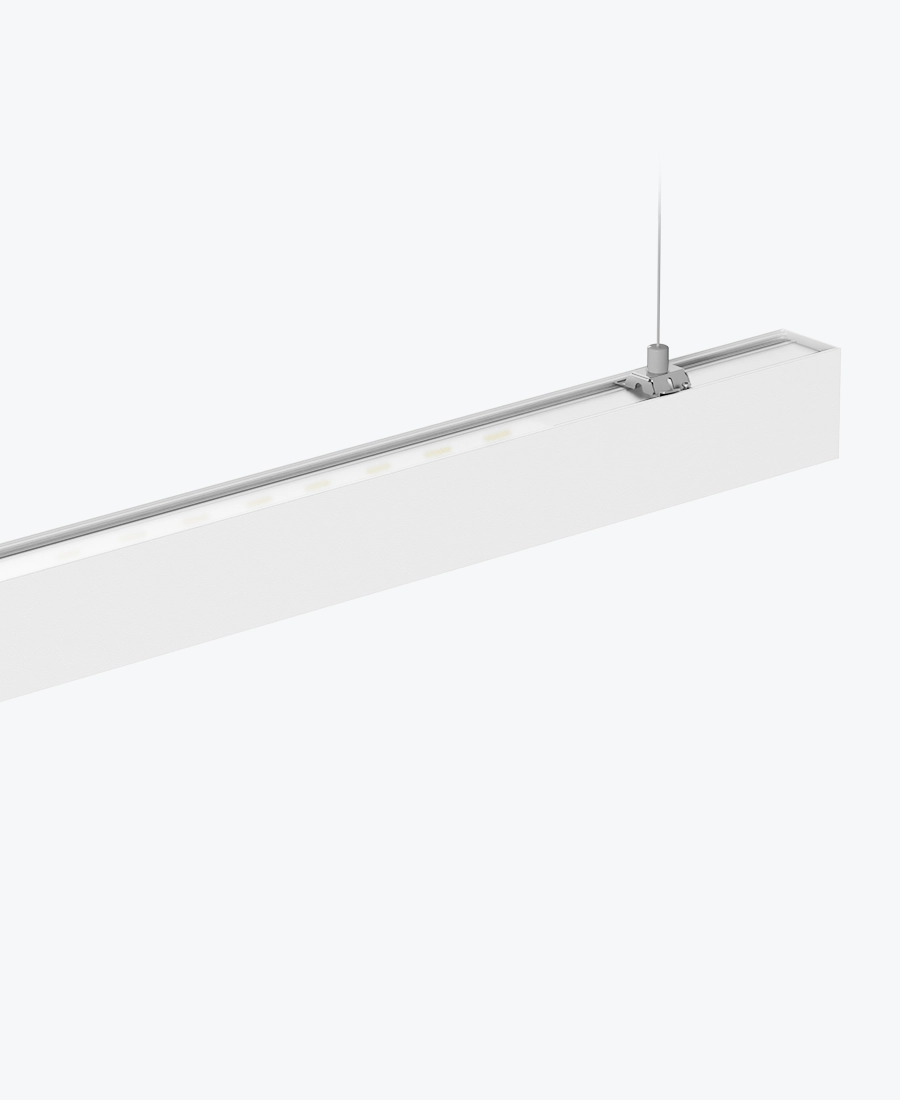

Mounting Mounting on steel wire without rosette, Mounting on steel wire with rosette and 3 full cables, Direct mounting with bracket, Mounting on a batten, Suspension on steel wire with rosette and 5-core cable, Mounting on track with DALI option

Regulation None, DALI, DALI + Bluetooth, DT8

Lifetime [h] L80B10 > 50000

Standard warranty (years) 5

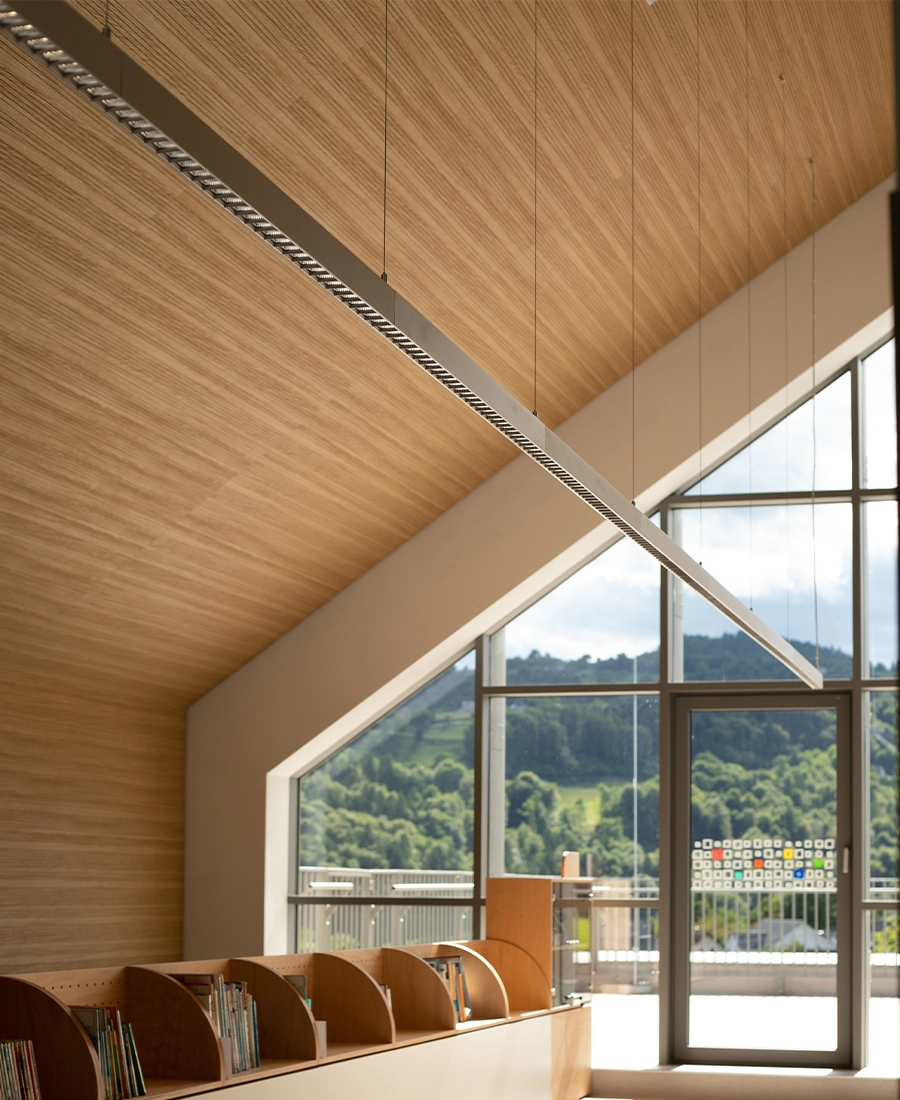

Areas of application Offices, Conference rooms, Libraries, Classrooms, Shops, Lobbies

Optics

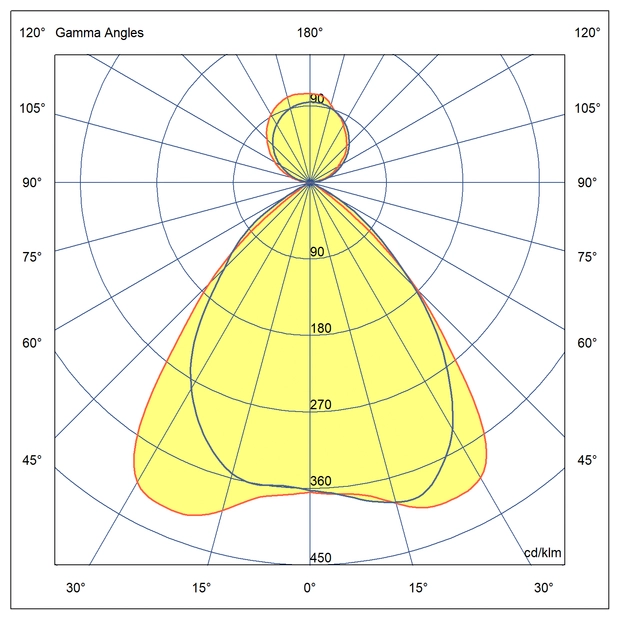

8585110

Symmetrical light distribution 85x85° + Symmetrical light distribution upwards 110°

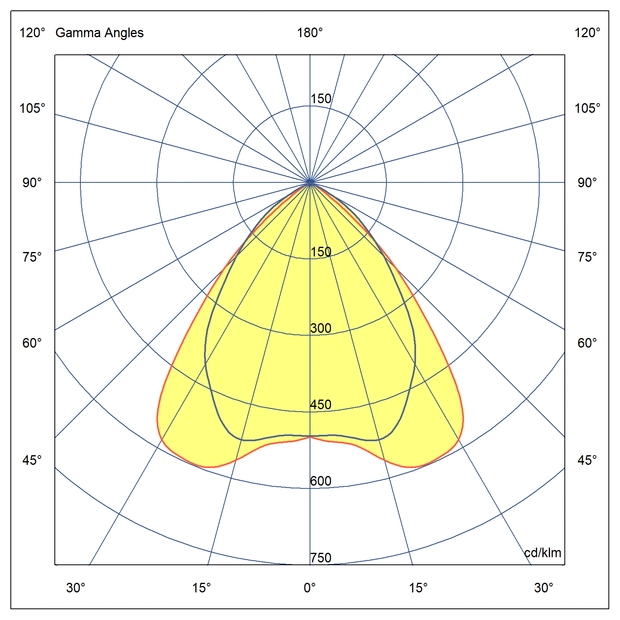

8585

Symmetrical light distribution 85x85°

Versions

Power (W) 30 45	Correlated color temperature (CCT, K) 4000 HCL - adjustable from 2700 to 5400	Luminous flux (lm) 3000 3050 3116 4500 5000 5063	Light distribution Direct / indirect Direct	Regulation None DALI DALI + Bluetooth DT8	Dimensions (W x H x D) [mm] 47 x 65 x 1167 47 x 65 x 2330	Mounting Mounting on steel wire without rosette Direct mounting with bracket Mounting on a batten Mounting on track with DALI option Mounting on steel wire with rosette and 3 full cables Suspension on steel wire with rosette and 5-core cable
30	4000	3116	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
30	4000	3116	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
30	4000	3116	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
30	4000	3116	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
30	4000	3116	Direct	None	47 x 65 x 1167	Direct mounting with bracket
30	4000	3116	Direct	None	47 x 65 x 1167	Direct mounting with bracket
30	4000	3116	Direct	None	47 x 65 x 1167	Mounting on a batten
30	4000	3116	Direct	None	47 x 65 x 1167	Mounting on a batten
30	4000	3116	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
30	4000	3116	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
30	4000	3116	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
30	4000	3116	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
30	4000	3116	Direct	None	47 x 65 x 1167	Direct mounting with bracket
30	4000	3116	Direct	None	47 x 65 x 1167	Direct mounting with bracket
30	4000	3116	Direct	None	47 x 65 x 1167	Mounting on a batten
30	4000	3116	Direct	None	47 x 65 x 1167	Mounting on a batten
30	4000	3116	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	4000	3116	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	4000	3116	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
30	4000	3116	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
30	4000	3116	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
30	4000	3116	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
30	4000	3116	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	4000	3116	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	4000	3116	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
30	4000	3116	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
30	4000	3116	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
30	4000	3116	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
30	4000	3050	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
30	4000	3050	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
30	4000	3050	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
30	4000	3050	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
30	4000	3050	Direct	None	47 x 65 x 1167	Direct mounting with bracket
30	4000	3050	Direct	None	47 x 65 x 1167	Direct mounting with bracket
30	4000	3050	Direct	None	47 x 65 x 1167	Mounting on a batten
30	4000	3050	Direct	None	47 x 65 x 1167	Mounting on a batten
30	4000	3050	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
30	4000	3050	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
30	4000	3050	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
30	4000	3050	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
30	4000	3050	Direct	None	47 x 65 x 1167	Direct mounting with bracket
30	4000	3050	Direct	None	47 x 65 x 1167	Direct mounting with bracket
30	4000	3050	Direct	None	47 x 65 x 1167	Mounting on a batten
30	4000	3050	Direct	None	47 x 65 x 1167	Mounting on a batten
30	4000	3050	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	4000	3050	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	4000	3050	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
30	4000	3050	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
30	4000	3050	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
30	4000	3050	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
30	4000	3050	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	4000	3050	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	4000	3050	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
30	4000	3050	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
30	4000	3050	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
30	4000	3050	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire without rosette
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire with rosette and 3 full cables
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire with rosette and 3 full cables
45	4000	5000	Direct	None	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	None	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	None	47 x 65 x 2330	Mounting on a batten
45	4000	5000	Direct	None	47 x 65 x 2330	Mounting on a batten
45	4000	5000	Direct / indirect	DALI	47 x 65 x 2330	Suspension on steel wire with rosette and 5-core cable
45	4000	5000	Direct / indirect	DALI	47 x 65 x 2330	Suspension on steel wire with rosette and 5-core cable
45	4000	5000	Direct	DALI	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	DALI	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	DALI	47 x 65 x 2330	Mounting on track with DALI option
45	4000	5000	Direct	DALI	47 x 65 x 2330	Mounting on track with DALI option
45	4000	5000	Direct / indirect	DALI	47 x 65 x 2330	Suspension on steel wire with rosette and 5-core cable
45	4000	5000	Direct / indirect	DALI	47 x 65 x 2330	Suspension on steel wire with rosette and 5-core cable
45	4000	5000	Direct	DALI	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	DALI	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	DALI	47 x 65 x 2330	Mounting on track with DALI option
45	4000	5000	Direct	DALI	47 x 65 x 2330	Mounting on track with DALI option
45	4000	5000	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
45	4000	5000	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
45	4000	5000	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
45	4000	5000	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
45	4000	5000	Direct	None	47 x 65 x 1167	Direct mounting with bracket
45	4000	5000	Direct	None	47 x 65 x 1167	Direct mounting with bracket
45	4000	5000	Direct	None	47 x 65 x 1167	Mounting on a batten
45	4000	5000	Direct	None	47 x 65 x 1167	Mounting on a batten
45	4000	5000	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
45	4000	5000	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
45	4000	5000	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
45	4000	5000	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
45	4000	5000	Direct	None	47 x 65 x 1167	Direct mounting with bracket
45	4000	5000	Direct	None	47 x 65 x 1167	Direct mounting with bracket
45	4000	5000	Direct	None	47 x 65 x 1167	Mounting on a batten
45	4000	5000	Direct	None	47 x 65 x 1167	Mounting on a batten
45	4000	5000	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
45	4000	5000	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
45	4000	5000	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
45	4000	5000	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
45	4000	5000	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
45	4000	5000	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
45	4000	5000	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
45	4000	5000	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
45	4000	5000	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
45	4000	5000	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
45	4000	5000	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
45	4000	5000	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire without rosette
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire without rosette
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire with rosette and 3 full cables
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire with rosette and 3 full cables
45	4000	5000	Direct	None	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	None	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	None	47 x 65 x 2330	Mounting on a batten
45	4000	5000	Direct	None	47 x 65 x 2330	Mounting on a batten
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire without rosette
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire without rosette
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire with rosette and 3 full cables
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire with rosette and 3 full cables
45	4000	5000	Direct	None	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	None	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	None	47 x 65 x 2330	Mounting on a batten
45	4000	5000	Direct	None	47 x 65 x 2330	Mounting on a batten
45	4000	5000	Direct / indirect	DALI	47 x 65 x 2330	Suspension on steel wire with rosette and 5-core cable
45	4000	5000	Direct / indirect	DALI	47 x 65 x 2330	Suspension on steel wire with rosette and 5-core cable
45	4000	5000	Direct	DALI	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	DALI	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	DALI	47 x 65 x 2330	Mounting on track with DALI option
45	4000	5000	Direct	DALI	47 x 65 x 2330	Mounting on track with DALI option
45	4000	5000	Direct / indirect	DALI	47 x 65 x 2330	Suspension on steel wire with rosette and 5-core cable
45	4000	5000	Direct / indirect	DALI	47 x 65 x 2330	Suspension on steel wire with rosette and 5-core cable
45	4000	5000	Direct	DALI	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	DALI	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	DALI	47 x 65 x 2330	Mounting on track with DALI option
45	4000	5000	Direct	DALI	47 x 65 x 2330	Mounting on track with DALI option
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire without rosette
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire without rosette
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire with rosette and 3 full cables
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire with rosette and 3 full cables
45	4000	5000	Direct	None	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	None	47 x 65 x 2330	Direct mounting with bracket
45	4000	5000	Direct	None	47 x 65 x 2330	Mounting on a batten
45	4000	5000	Direct	None	47 x 65 x 2330	Mounting on a batten
45	4000	5000	Direct / indirect	None	47 x 65 x 2330	Mounting on steel wire without rosette
45	4000	5063	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
45	4000	5063	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
45	4000	5063	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
45	4000	5063	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
45	4000	5063	Direct	None	47 x 65 x 1167	Direct mounting with bracket
45	4000	5063	Direct	None	47 x 65 x 1167	Direct mounting with bracket
45	4000	5063	Direct	None	47 x 65 x 1167	Mounting on a batten
45	4000	5063	Direct	None	47 x 65 x 1167	Mounting on a batten
45	4000	5063	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
45	4000	5063	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire without rosette
45	4000	5063	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
45	4000	5063	Direct / indirect	None	47 x 65 x 1167	Mounting on steel wire with rosette and 3 full cables
45	4000	5063	Direct	None	47 x 65 x 1167	Direct mounting with bracket
45	4000	5063	Direct	None	47 x 65 x 1167	Direct mounting with bracket
45	4000	5063	Direct	None	47 x 65 x 1167	Mounting on a batten
45	4000	5063	Direct	None	47 x 65 x 1167	Mounting on a batten
45	4000	5063	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
45	4000	5063	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
45	4000	5063	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
45	4000	5063	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
45	4000	5063	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
45	4000	5063	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
45	4000	5063	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
45	4000	5063	Direct / indirect	DALI	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
45	4000	5063	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
45	4000	5063	Direct	DALI	47 x 65 x 1167	Direct mounting with bracket
45	4000	5063	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
45	4000	5063	Direct	DALI	47 x 65 x 1167	Mounting on track with DALI option
30	HCL - adjustable from 2700 to 5400	3000	Direct / indirect	DALI + Bluetooth	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	HCL - adjustable from 2700 to 5400	3000	Direct / indirect	DALI + Bluetooth	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	HCL - adjustable from 2700 to 5400	3000	Direct	DALI + Bluetooth	47 x 65 x 1167	Direct mounting with bracket
30	HCL - adjustable from 2700 to 5400	3000	Direct	DALI + Bluetooth	47 x 65 x 1167	Direct mounting with bracket
30	HCL - adjustable from 2700 to 5400	3000	Direct	DALI + Bluetooth	47 x 65 x 1167	Mounting on track with DALI option
30	HCL - adjustable from 2700 to 5400	3000	Direct	DALI + Bluetooth	47 x 65 x 1167	Mounting on track with DALI option
45	HCL - adjustable from 2700 to 5400	4500	Direct / indirect	DALI + Bluetooth	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
45	HCL - adjustable from 2700 to 5400	4500	Direct / indirect	DALI + Bluetooth	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
45	HCL - adjustable from 2700 to 5400	4500	Direct	DALI + Bluetooth	47 x 65 x 1167	Direct mounting with bracket
45	HCL - adjustable from 2700 to 5400	4500	Direct	DALI + Bluetooth	47 x 65 x 1167	Direct mounting with bracket
45	HCL - adjustable from 2700 to 5400	4500	Direct	DALI + Bluetooth	47 x 65 x 1167	Mounting on track with DALI option
45	HCL - adjustable from 2700 to 5400	4500	Direct	DALI + Bluetooth	47 x 65 x 1167	Mounting on track with DALI option
30	HCL - adjustable from 2700 to 5400	3000	Direct / indirect	DT8	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	HCL - adjustable from 2700 to 5400	3000	Direct / indirect	DT8	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	HCL - adjustable from 2700 to 5400	3000	Direct	DT8	47 x 65 x 1167	Direct mounting with bracket
30	HCL - adjustable from 2700 to 5400	3000	Direct	DT8	47 x 65 x 1167	Direct mounting with bracket
30	HCL - adjustable from 2700 to 5400	3000	Direct	DT8	47 x 65 x 1167	Mounting on track with DALI option
30	HCL - adjustable from 2700 to 5400	3000	Direct	DT8	47 x 65 x 1167	Mounting on track with DALI option
30	HCL - adjustable from 2700 to 5400	3000	Direct / indirect	DT8	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	HCL - adjustable from 2700 to 5400	3000	Direct / indirect	DT8	47 x 65 x 1167	Suspension on steel wire with rosette and 5-core cable
30	HCL - adjustable from 2700 to 5400	3000	Direct	DT8	47 x 65 x 1167	Direct mounting with bracket
30	HCL - adjustable from 2700 to 5400	3000	Direct	DT8	47 x 65 x 1167	Direct mounting with bracket
30	HCL - adjustable from 2700 to 5400	3000	Direct	DT8	47 x 65 x 1167	Mounting on track with DALI option
30	HCL - adjustable from 2700 to 5400	3000	Direct	DT8	47 x 65 x 1167	Mounting on track with DALI option
Show more Hide

Documentation I LUM

LDT files

BIM files

Certificates

Installation instructions

General catalogue luminaries 2025

Better light quality

Advanced LED luminaires improve visibility, well-being, and productivity for users. With the latest Human Centric Lighting technology, LED luminaires mimic the natural daily light cycle and support the human biological rhythm—for better health, greater concentration, and well-being throughout the day.
