O LUM SCREEN

Description
Versions
Documents
Inquiry

INDOOR LIGHTING

O LUM SCREEN

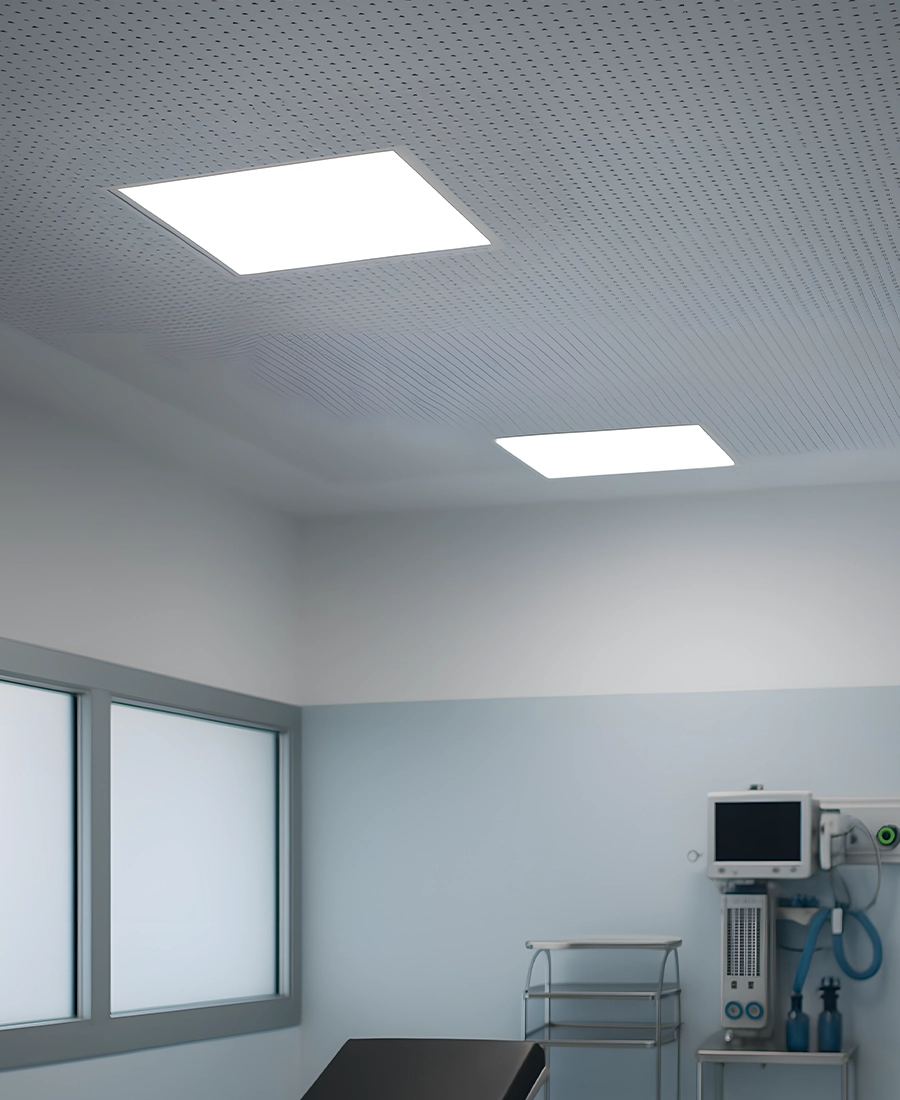

O LUM SCREEN is designed for highly efficient lighting in environments where cleanliness and good visibility are are of key importance. It is ideal for clean rooms, laboratories, hospitals, health centers, and various medical and manufacturing facilities. Its design allows for easy cleaning while preventing the ingress of dust, ensuring safe and reliable operation even in the most demanding working conditions.

Luminaire for clean rooms, kitchens, pharmacies, hospitals
Low UGR
Energy efficiency
Exceptional resistance to dust ingress
Latest technology
More Send inquiry

Technical specifications

Luminaires O LUM SCREEN
System efficiency [lm/W] to 120
Color rendering index (CRI, Ra) > 80
Power (W) 40
Luminous flux (lm) 4800
Correlated color temperature (CCT, K) 4000
Intrusion protection IP65
Operating temperature [°C] from -20 to +45
Mounting Recessed
Regulation None, DALI
Lifetime [h] L80B10 > 50000
Standard warranty (years) 5
Areas of application Clean rooms, Laboratories, Hospitals
LED module.
LED module.
Connection voltage.
Connection voltage.
Electrical shock protection class I
Electrical shock protection class I
Degree of protection of the housing against the ingress of solid particles and water according to IEC 60529.
Degree of protection of the housing against the ingress of solid particles and water according to IEC 60529.
Možnost upravljanja.
Možnost upravljanja.
Easy installation
Easy installation
Low maintenance.
Low maintenance.
Overload protection.
Overload protection.
Dimming option.
Dimming option.
Programmable LED driver.
Programmable LED driver.
Emergency lighting module
Emergency lighting module
Recycled materials.
Recycled materials.
Long lifetime (L80/B10 @ h)
Long lifetime (L80/B10 @ h)
The product complies with the basic safety, health, and environmental requirements of EU legislation.
The product complies with the basic safety, health, and environmental requirements of EU legislation.

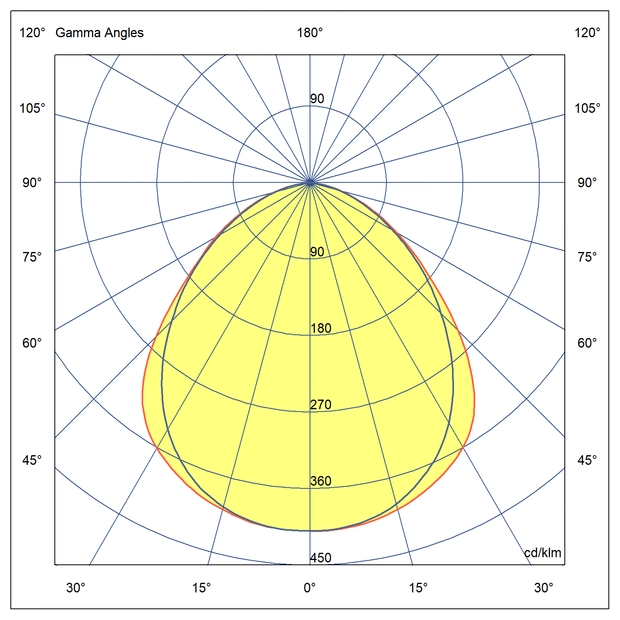

Optics
Slider ikona nazaj
Slider ikona naprej
Versions
  • 596 x 90 x 596
  • 620 x 90 x 620
  • 645 x 90 x 645
  • No
  • Yes
  • None
  • 1
  • 3
  • None
  • DALI
596 x 90 x 596 No None None
Icon download PDF
596 x 90 x 596 No None DALI
Icon download PDF
596 x 90 x 596 Yes 1 None
Icon download PDF
596 x 90 x 596 Yes 3 None
Icon download PDF
620 x 90 x 620 No None None
Icon download PDF
620 x 90 x 620 No None DALI
Icon download PDF
620 x 90 x 620 Yes 1 None
Icon download PDF
620 x 90 x 620 Yes 3 None
Icon download PDF
645 x 90 x 645 No None None
Icon download PDF
645 x 90 x 645 No None DALI
Icon download PDF
645 x 90 x 645 Yes 1 None
Icon download PDF
645 x 90 x 645 Yes 3 None
Icon download PDF
Documentation O LUM SCREEN
LDT files LDT
BIM files BIM
Certificates Ikona
Installation instructions Installation
General catalogue luminaries 2025 General
Slika dokumentacija
O LUM SCREEN
Luminaires O LUM SCREEN
